3D Scanner

Design of 3D Scanner to scan objects accurately.

India
Created on 2020.05.27 618 views
6
ABOUT
PROJECT TIMELINE

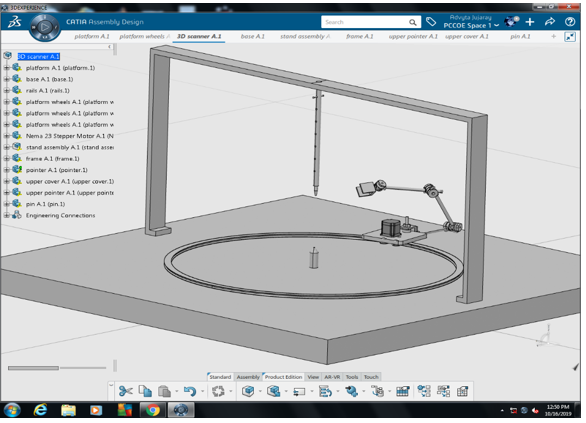

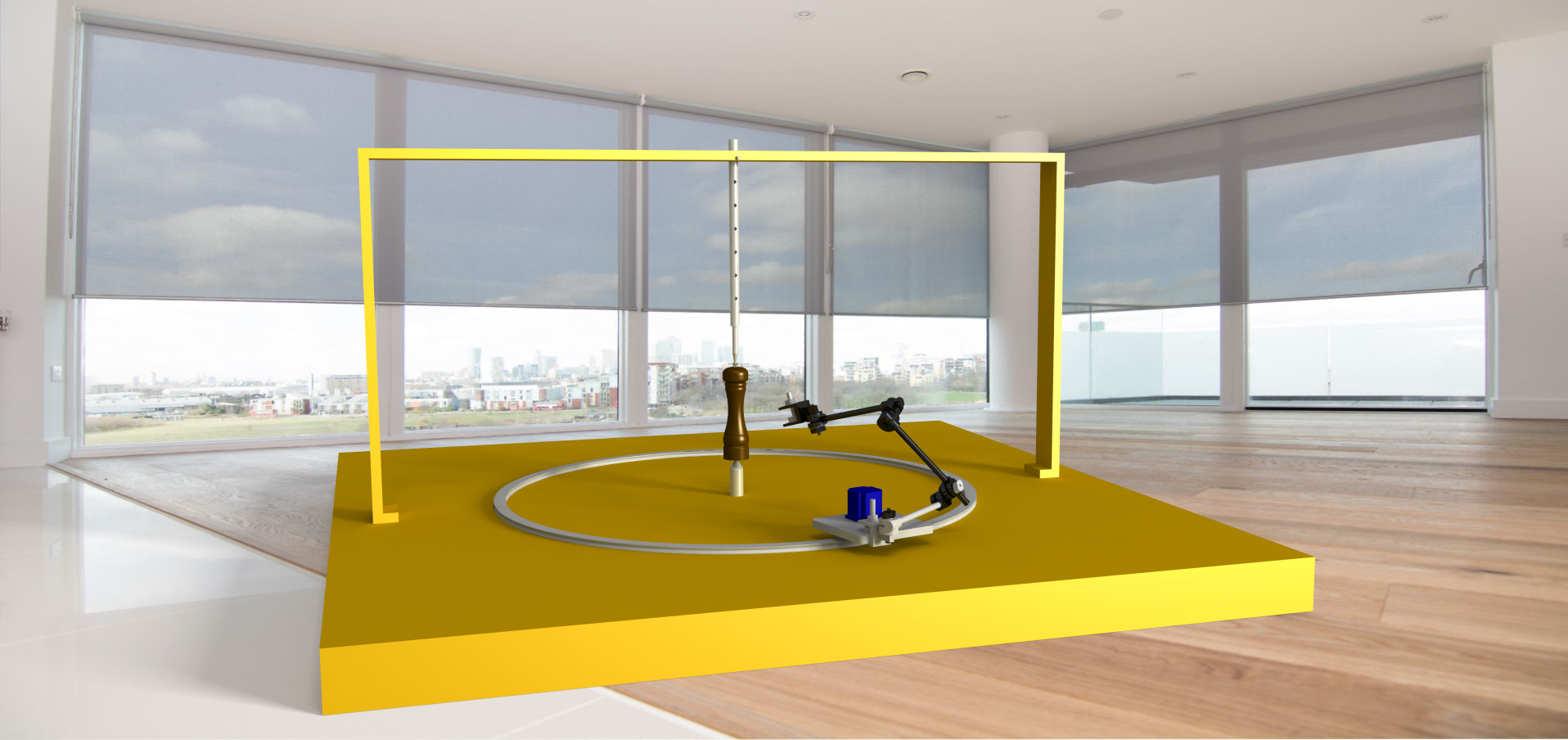

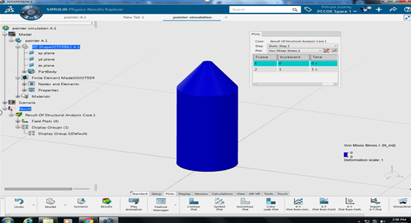

Hello everyone!! 3D scanning is gaining its popularity in this new-age technology since it is the process of analyzing a real-world object or environment to collect data on its shape and possibly its appearance. The collected data is then utilized to construct digital 3D models in CAD software. This technology is used in augmented reality, motion capture, gesture recognition, robotic mapping, industrial design, reverse engineering, prototyping, quality control, inspection, and the digitization of cultural artifacts. This report introduces a mechanism to construct a 3D scanner that is convenient to use and handle. The object held between two-point supports is scanned by Intel SR 300 scanner with the help of a dolly mechanism. Data points collected by the scanner are converted into an STL file in 3D Sense. These points can be imported and optimized using the Function Generative Design app of 3D Experience Platform, a Dassault Systeme's platform (3DPLM). Part Design, Assembly Design, Mechanical System Design, Structural Scenario Creation, Mechanical Scenario Creation, Physics Results Explorer are some of the apps used for this project. It gives us immense pleasure to participate in the PROJECT OF THE YEAR 2020 competition! Thank you Dassault Syste'mes for letting showcase our project! #poty2020
Discover the team
Who’s behind this project
SM Shalmali Mutalik
Discover the solution
Software used for this project
6
Project Timeline
Project Timeline
