An aircraft concept

Created on 2018.06.15 1072 views

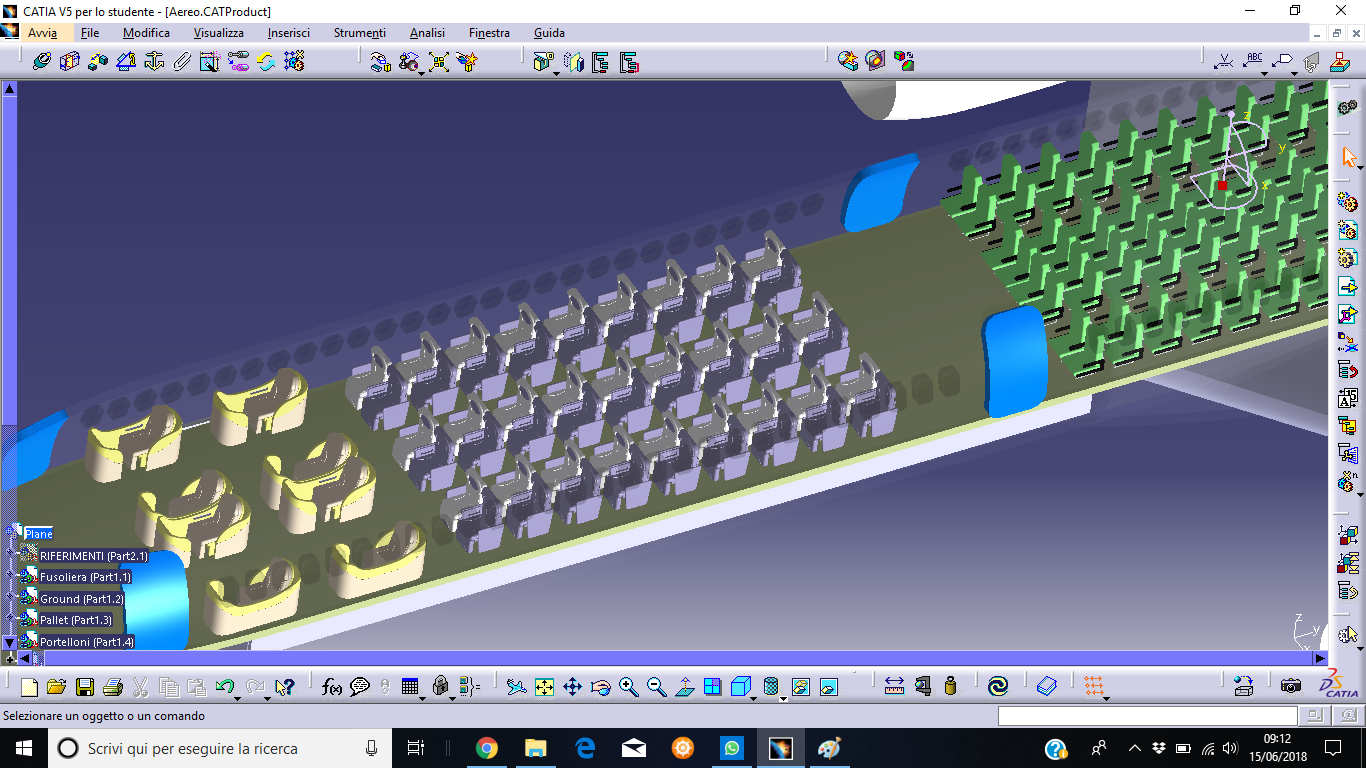

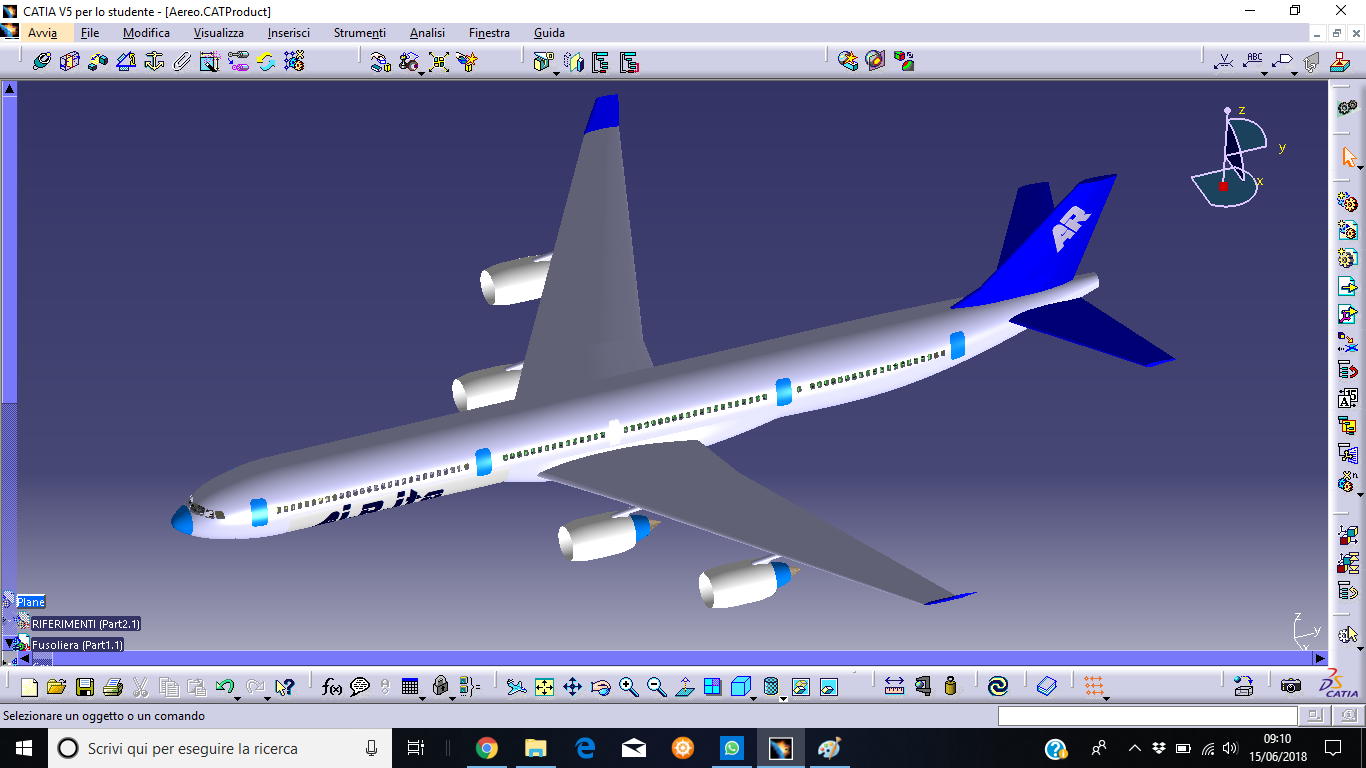

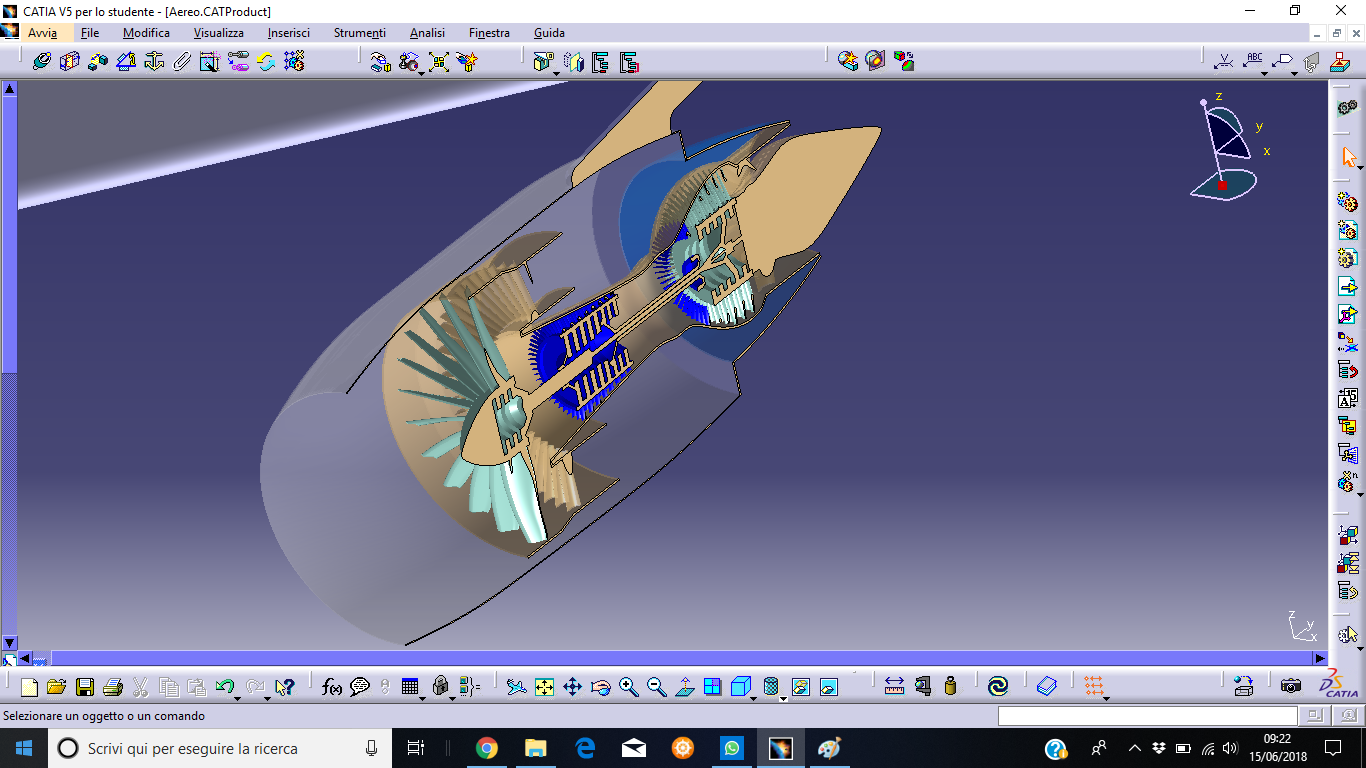

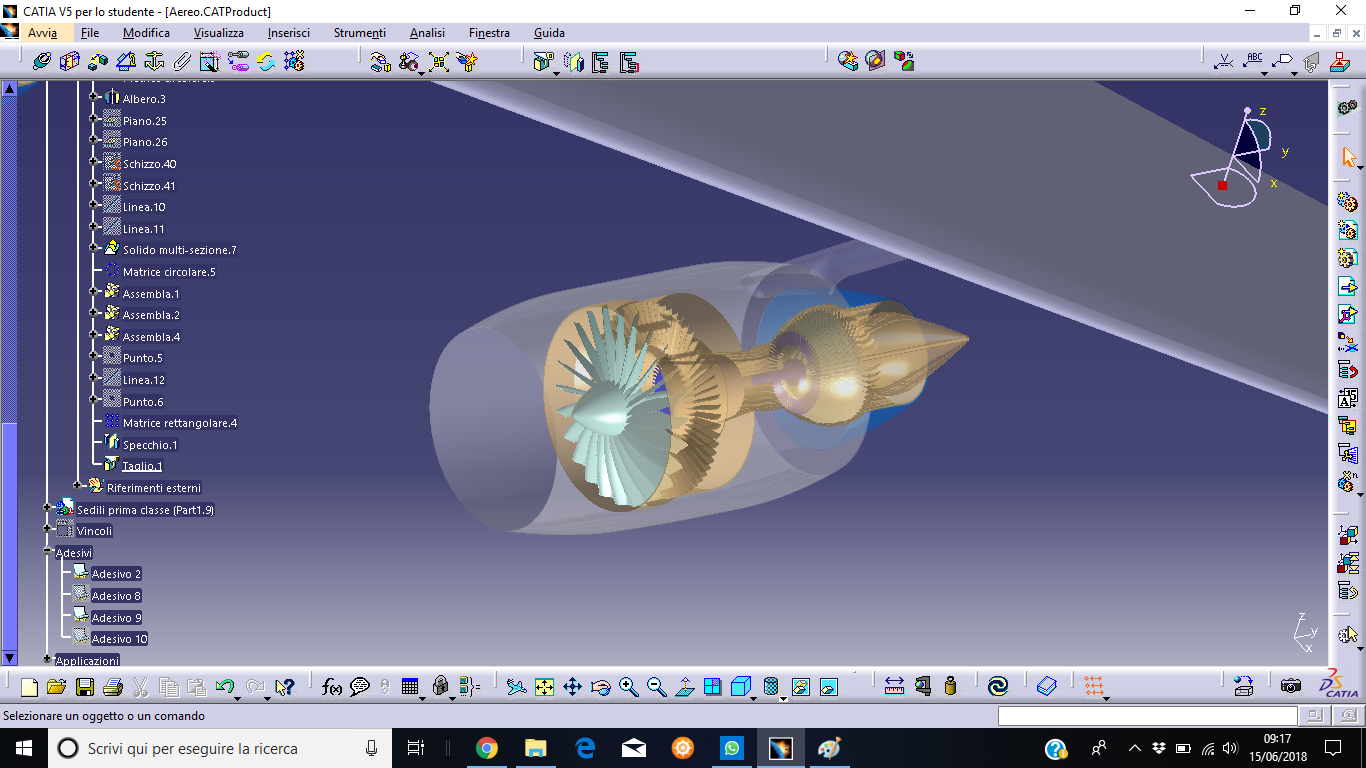

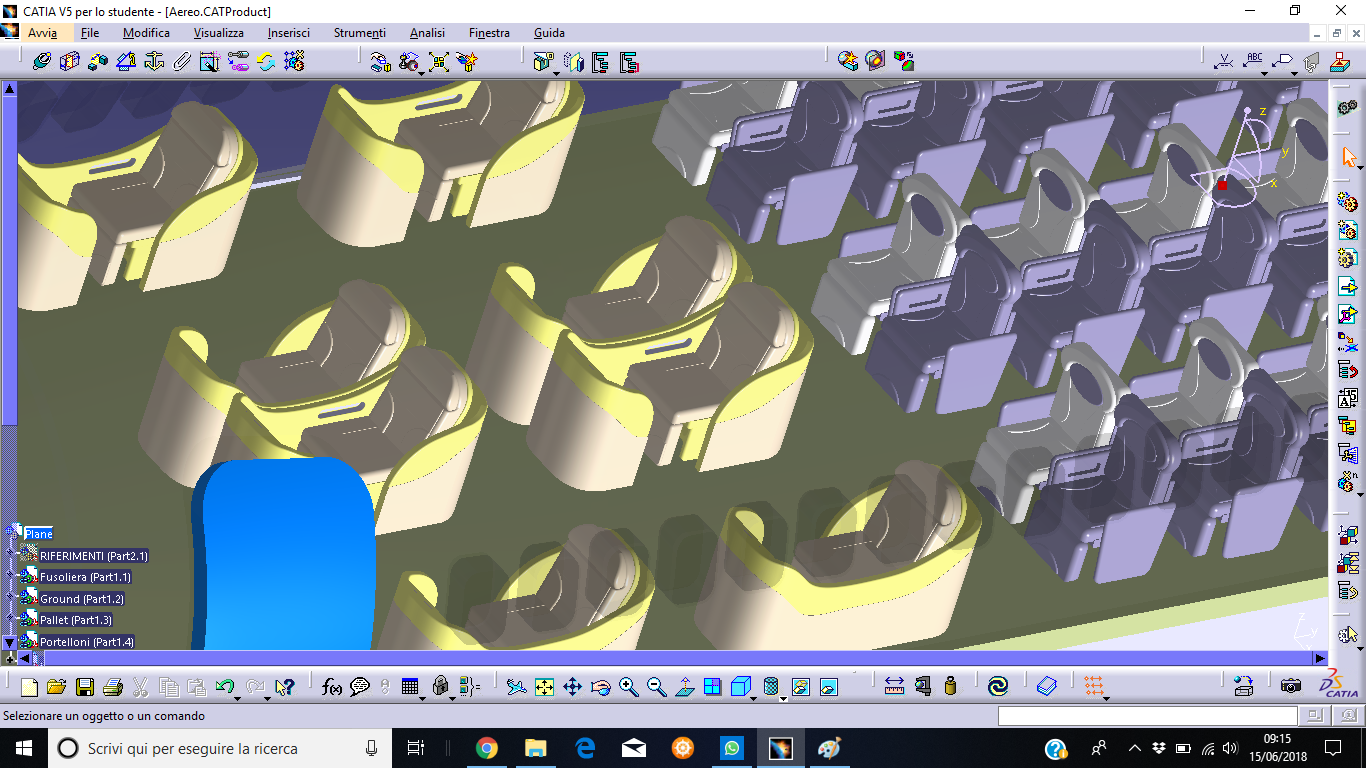

I realized this project in the context of an university course. We were reqired to design an aircraft inspired to Airbus A340 family, considering several semplification needed by the short time disposition. I worked on dimensioning the structural parts, by making them possibly able to allow flight. Regarding propulsion, I chose to arm four twin-spool front fan turbo-jet engines, so I tried to create a convincing schematic system of compressors and turbines. Finally I enjoyed personalizing the interior. I thought of a seat disposition which could be confortable for passengers, then I opted for different classes solution, in order to satisfy any costumer demand. I worked on a CATIA V5 student version, making use of the hybrid modelation and the rendering options made available by the software itself.
