BERETTA 84F ASSEMBLY

Created on 2016.08.04 1252 views
8
ABOUT
PROJECT TIMELINE

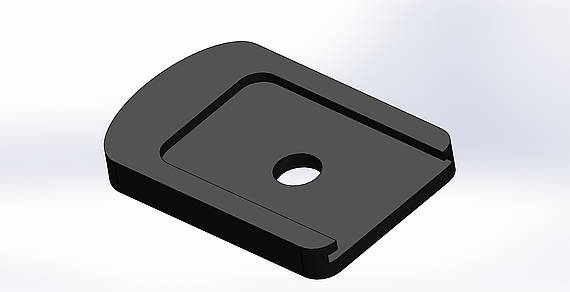

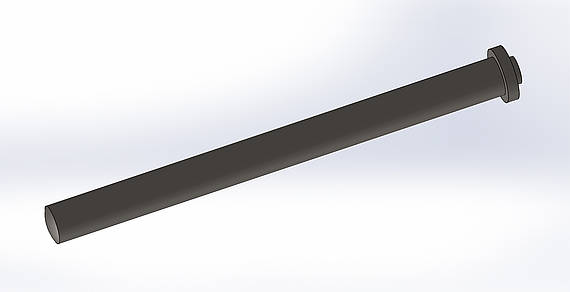

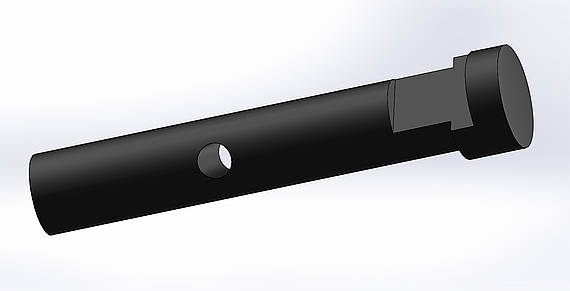

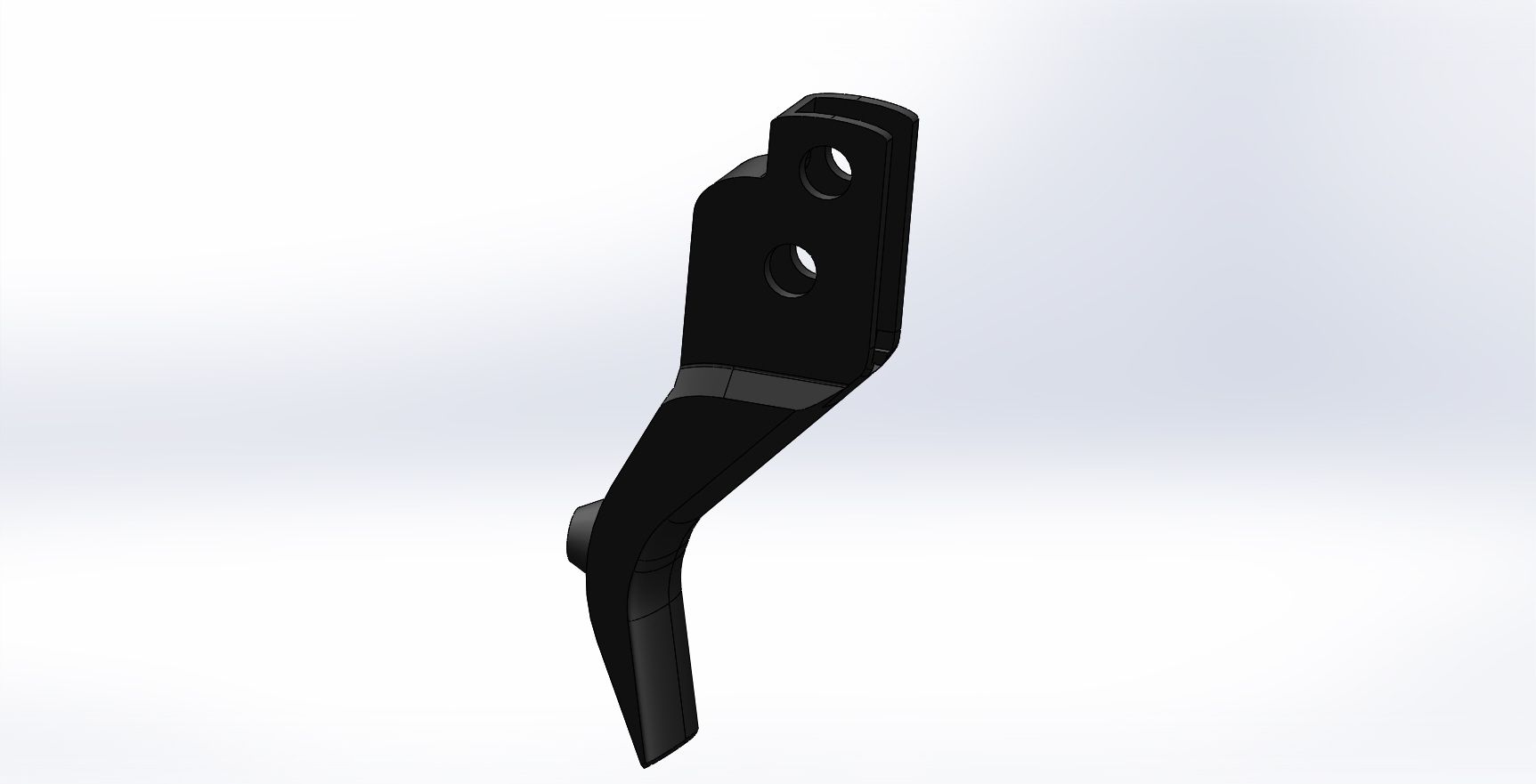

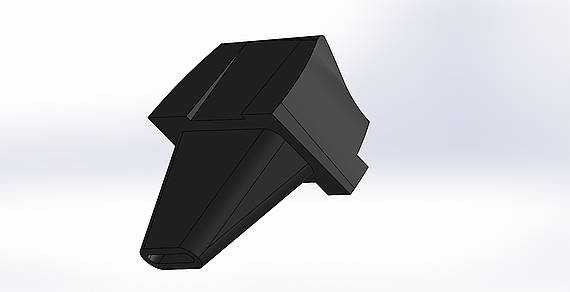

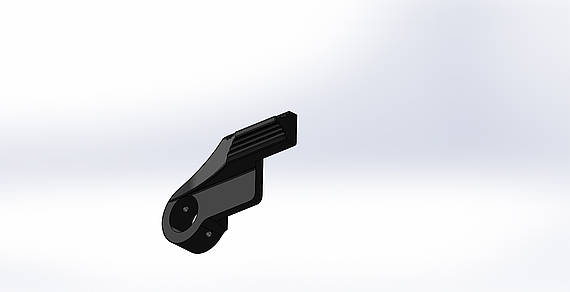

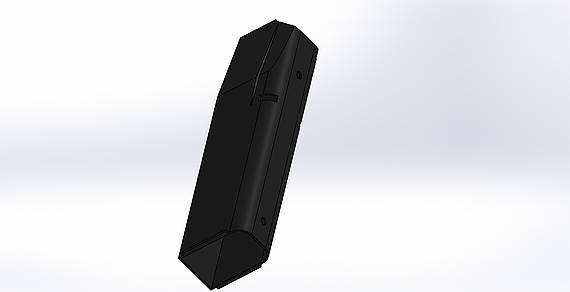

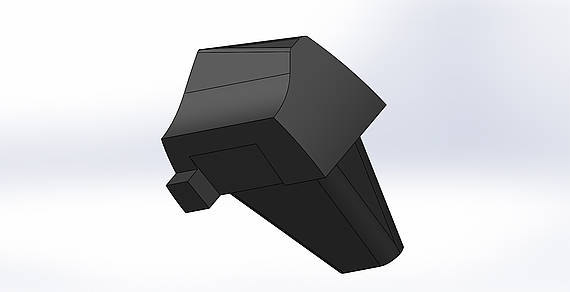

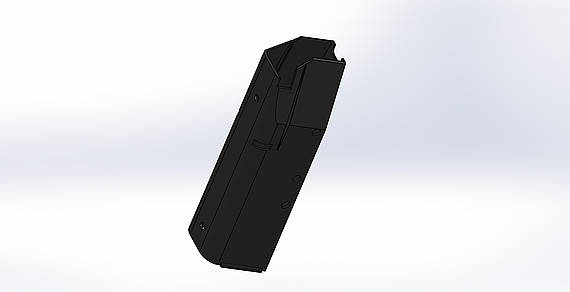

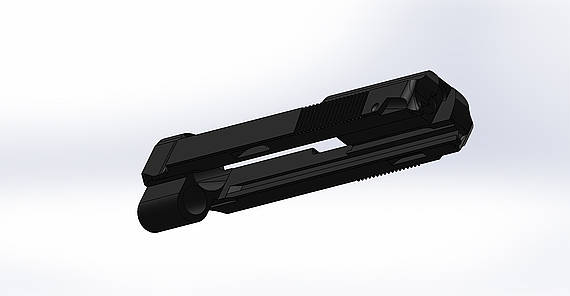

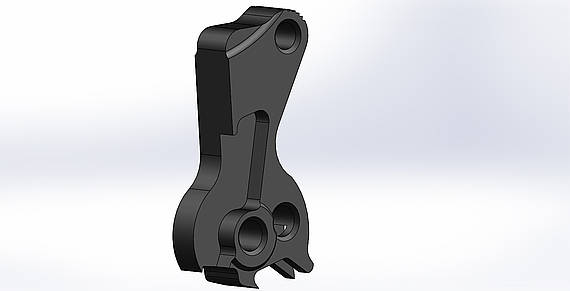

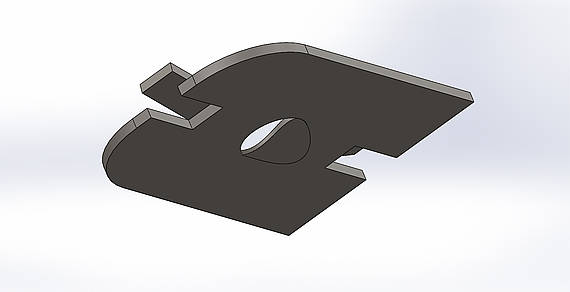

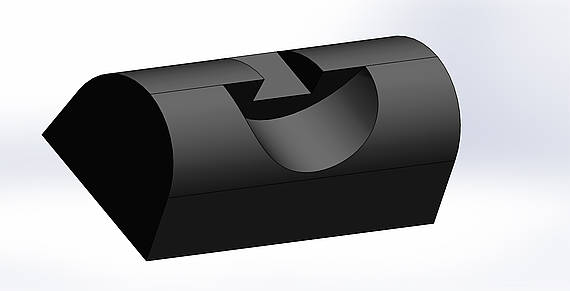

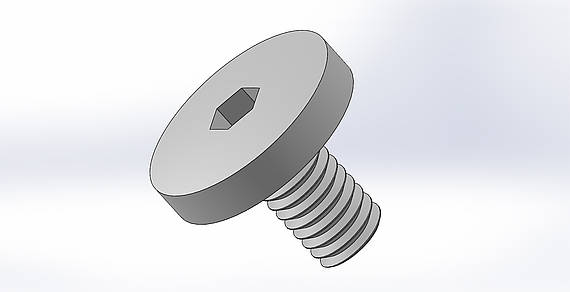

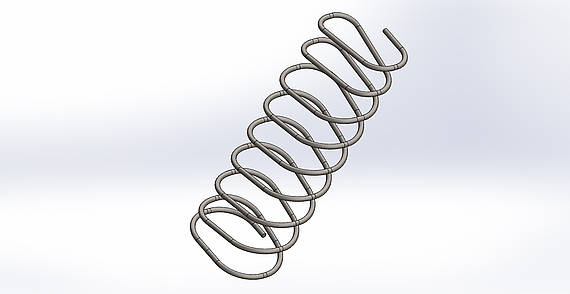

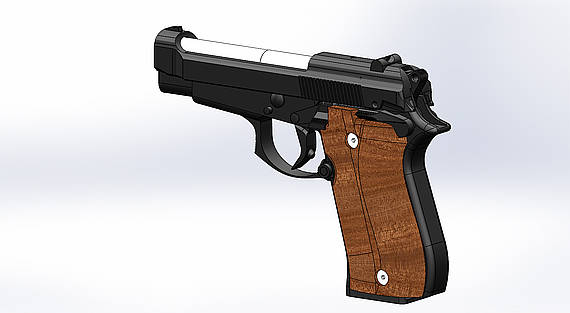

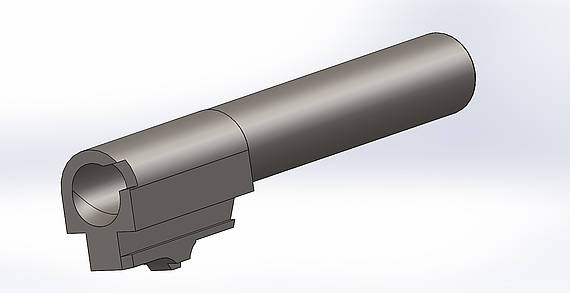

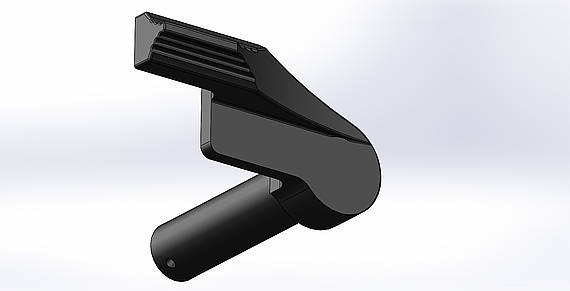

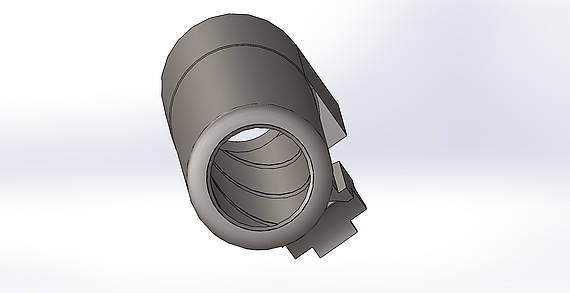

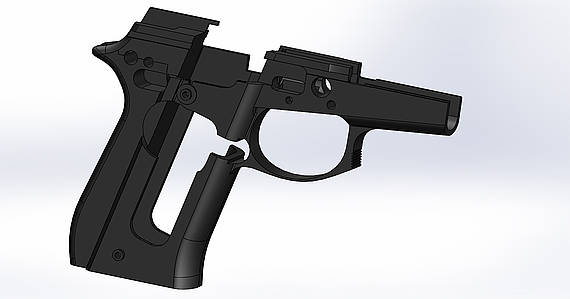

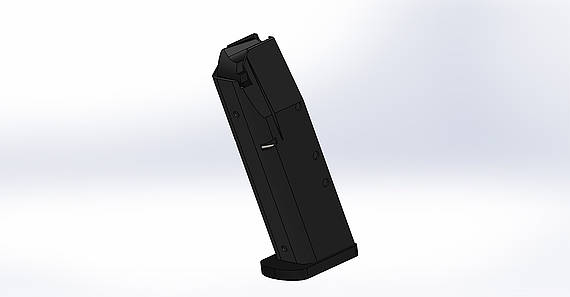

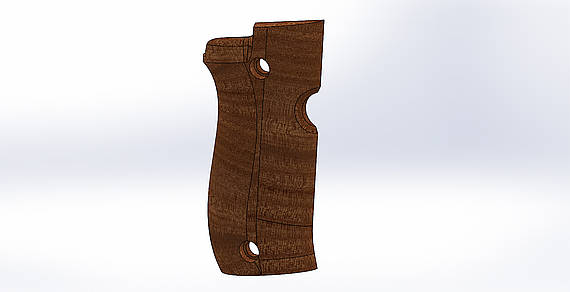

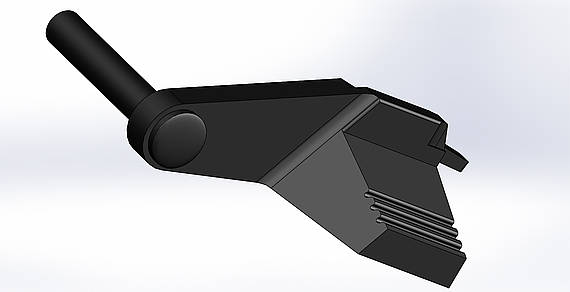

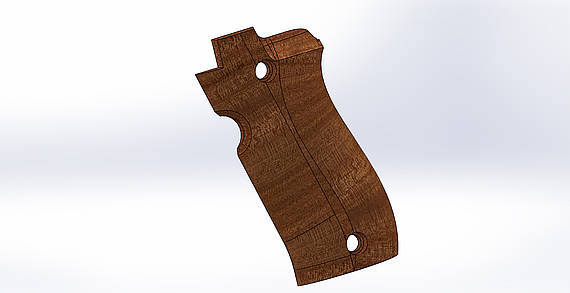

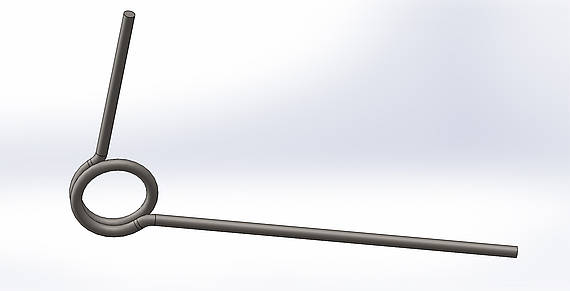

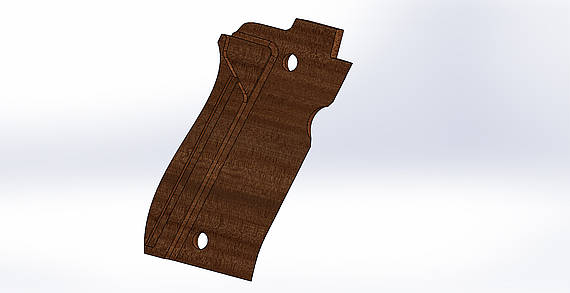

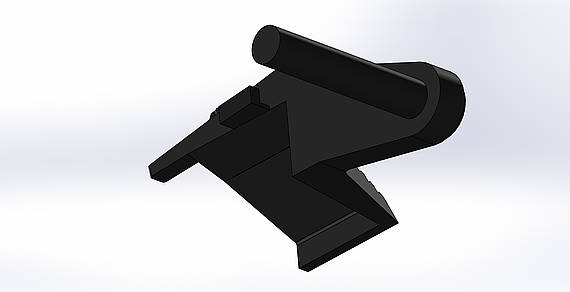

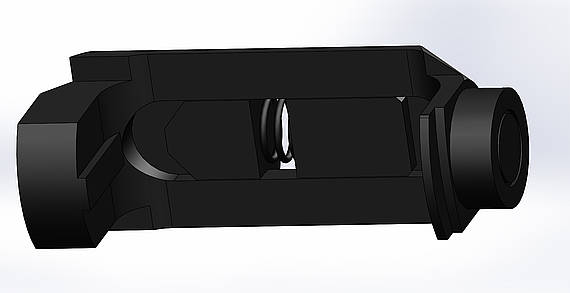

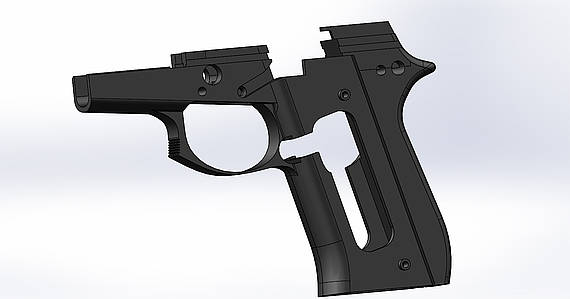

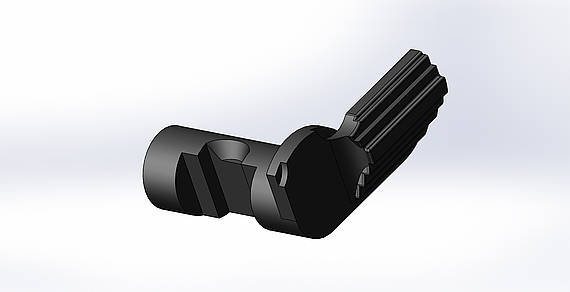

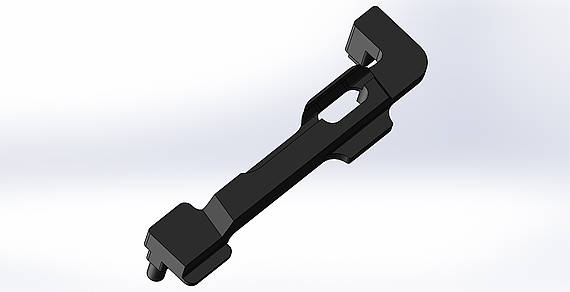

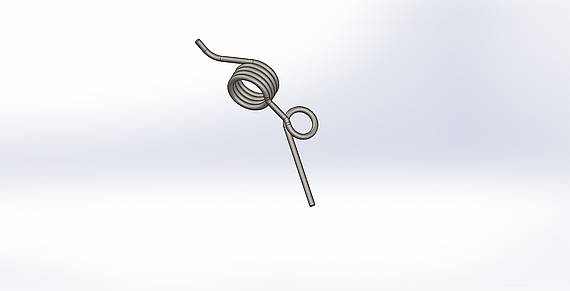

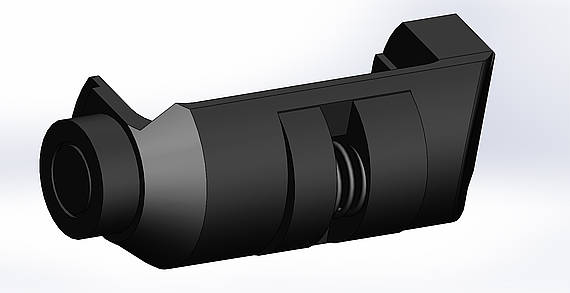

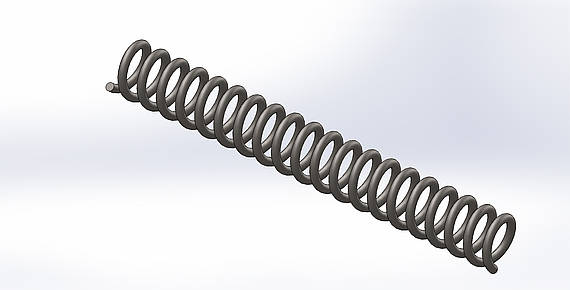

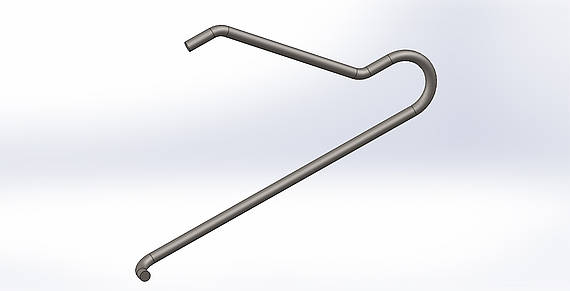

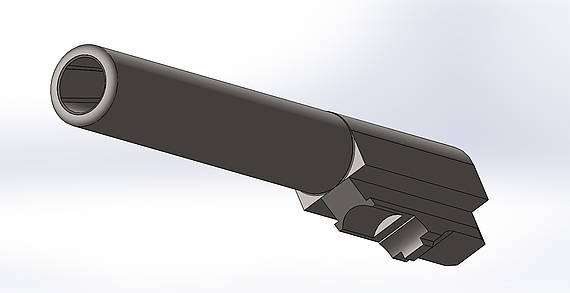

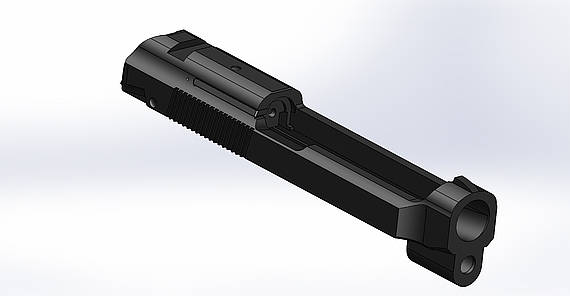

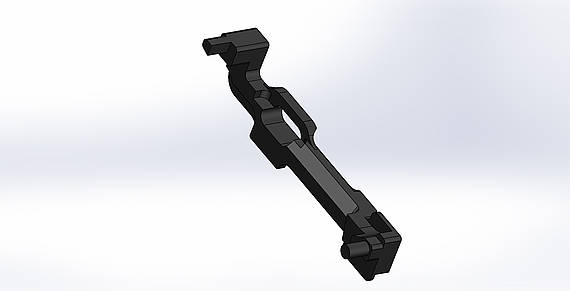

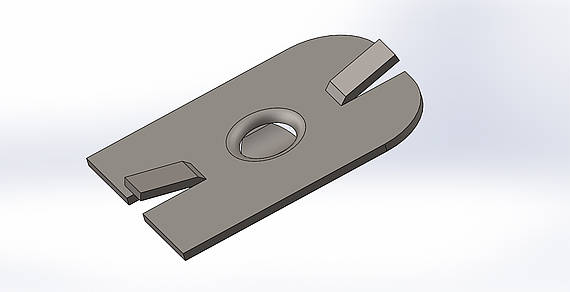

I started this project to demonstrate my ability in Solidworks to potential employers. I spent a little over 2 weeks on this, disassembling the pistol, measuring every part, modeling it, assembling it, and creating the animation video. This was created without any blueprints, all measurements were done by me with a digital caliper. I missed the original announcement for this competition, but soon after starting I received an e-mail notifying me that the deadline for submissions was soon. I decided since I was doing this project anyway, I would slightly modify the parameters to make it possible to meet the deadline. This means I didn't individually model some of the harder to remove parts in the slide and frame. Despite this, the assembly presented here is still very true to the original. The project can also be seen on GrabCAD here: https://grabcad.com/library/beretta-84f-1
