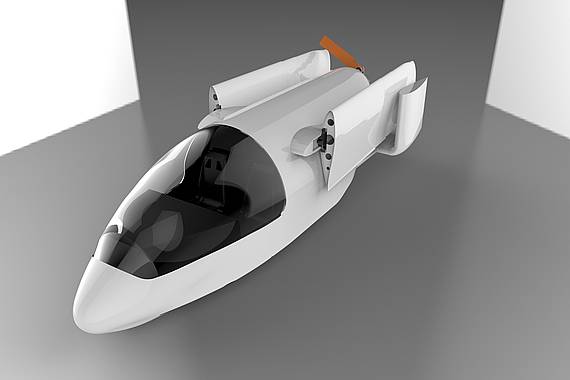

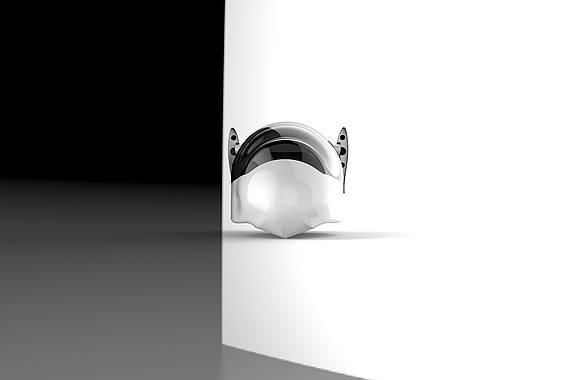

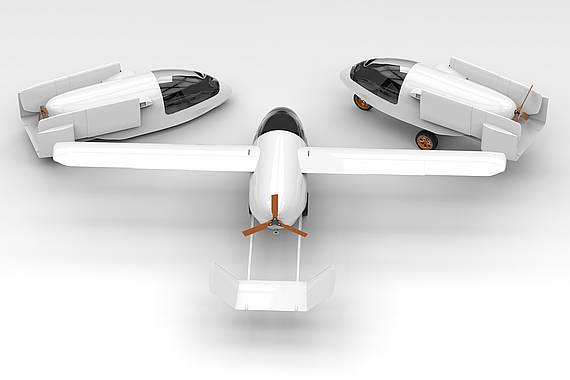

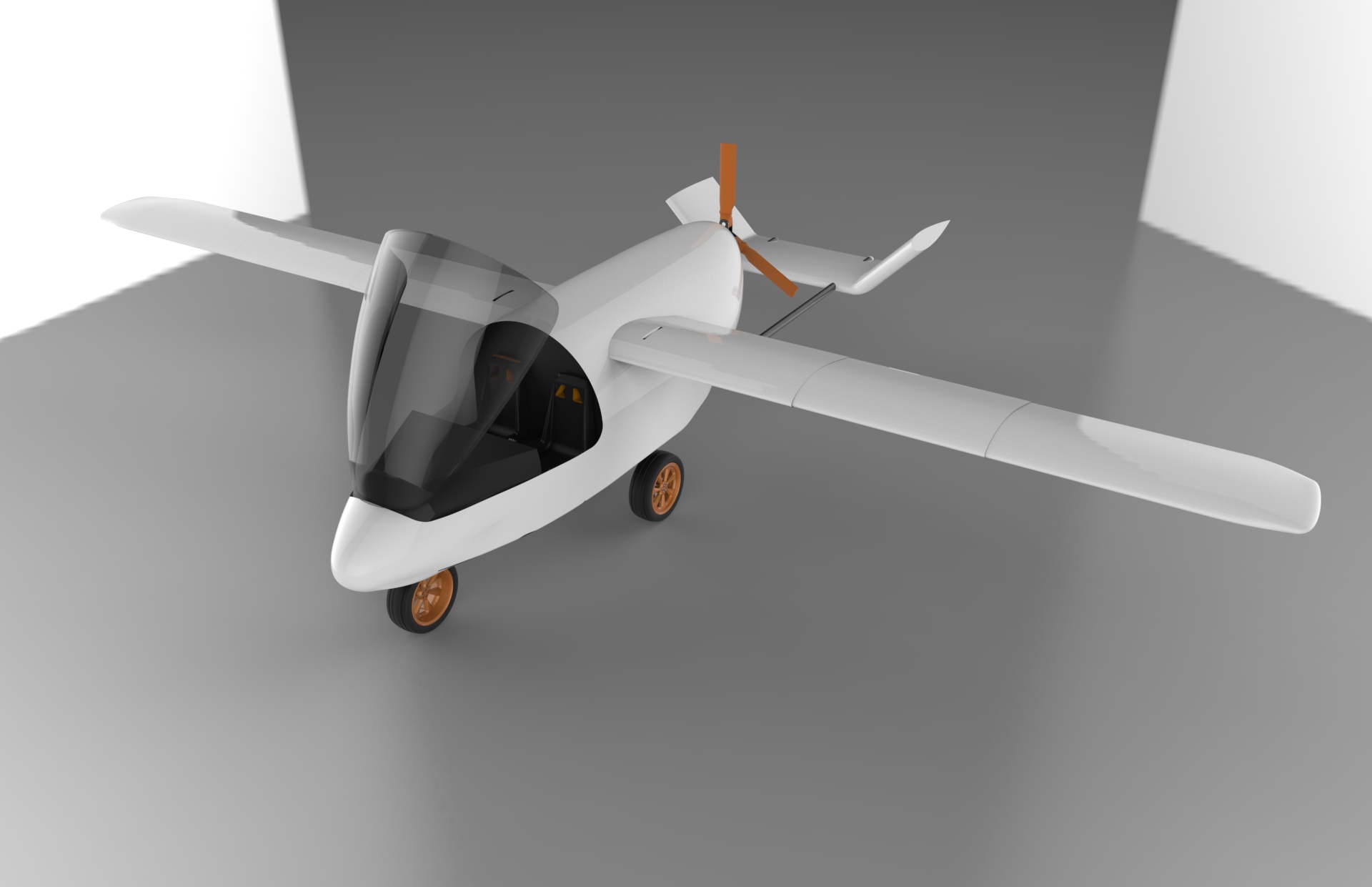

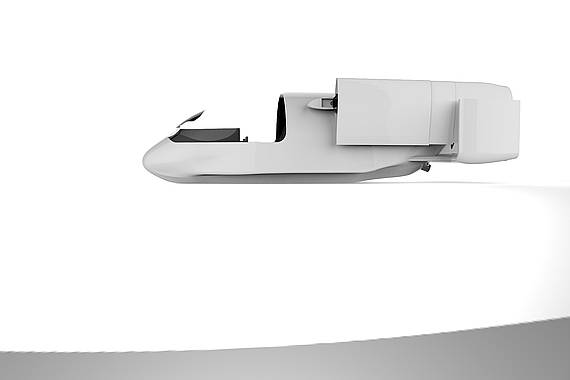

CONCEPTUAL DESIGN OF A TRI-VEHICLE

Created on 2016.07.29 204 views
21
ABOUT
PROJECT TIMELINE

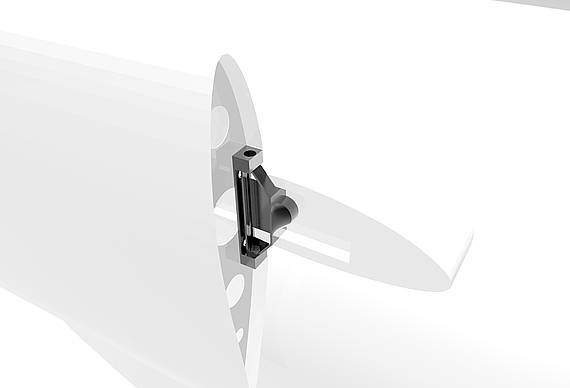

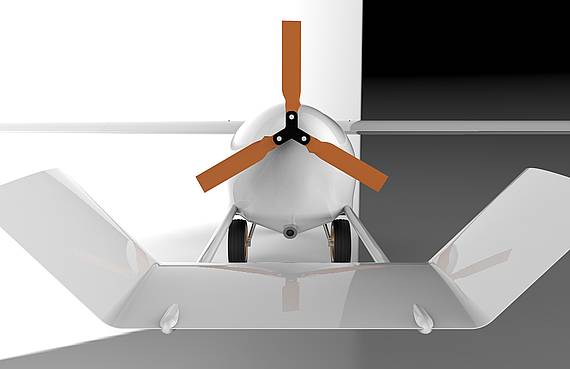

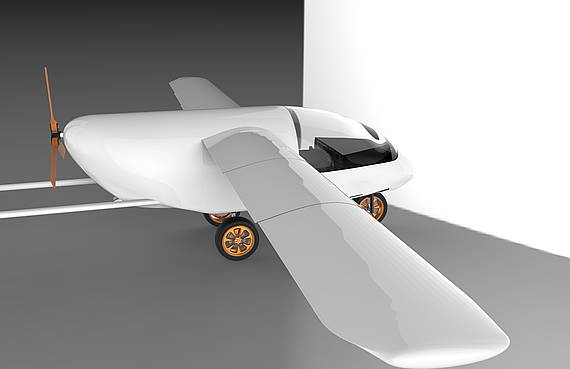

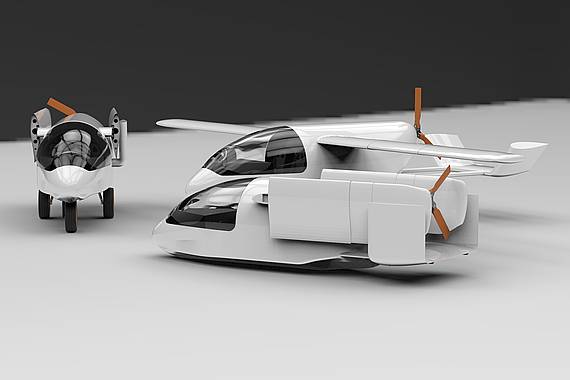

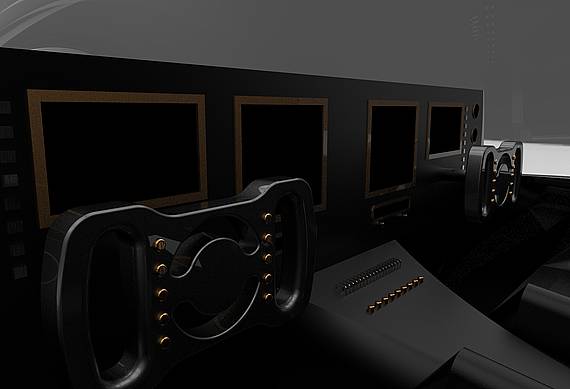

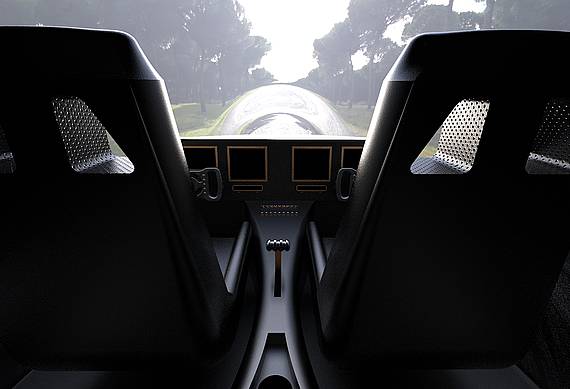

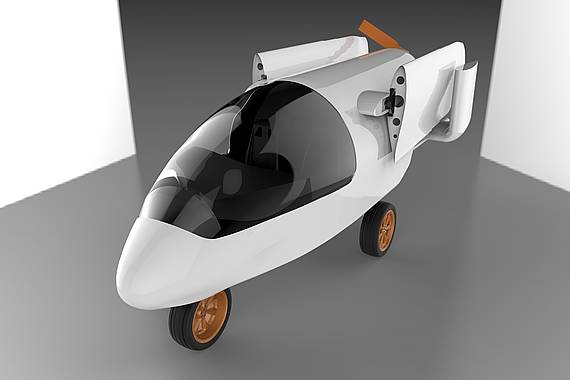

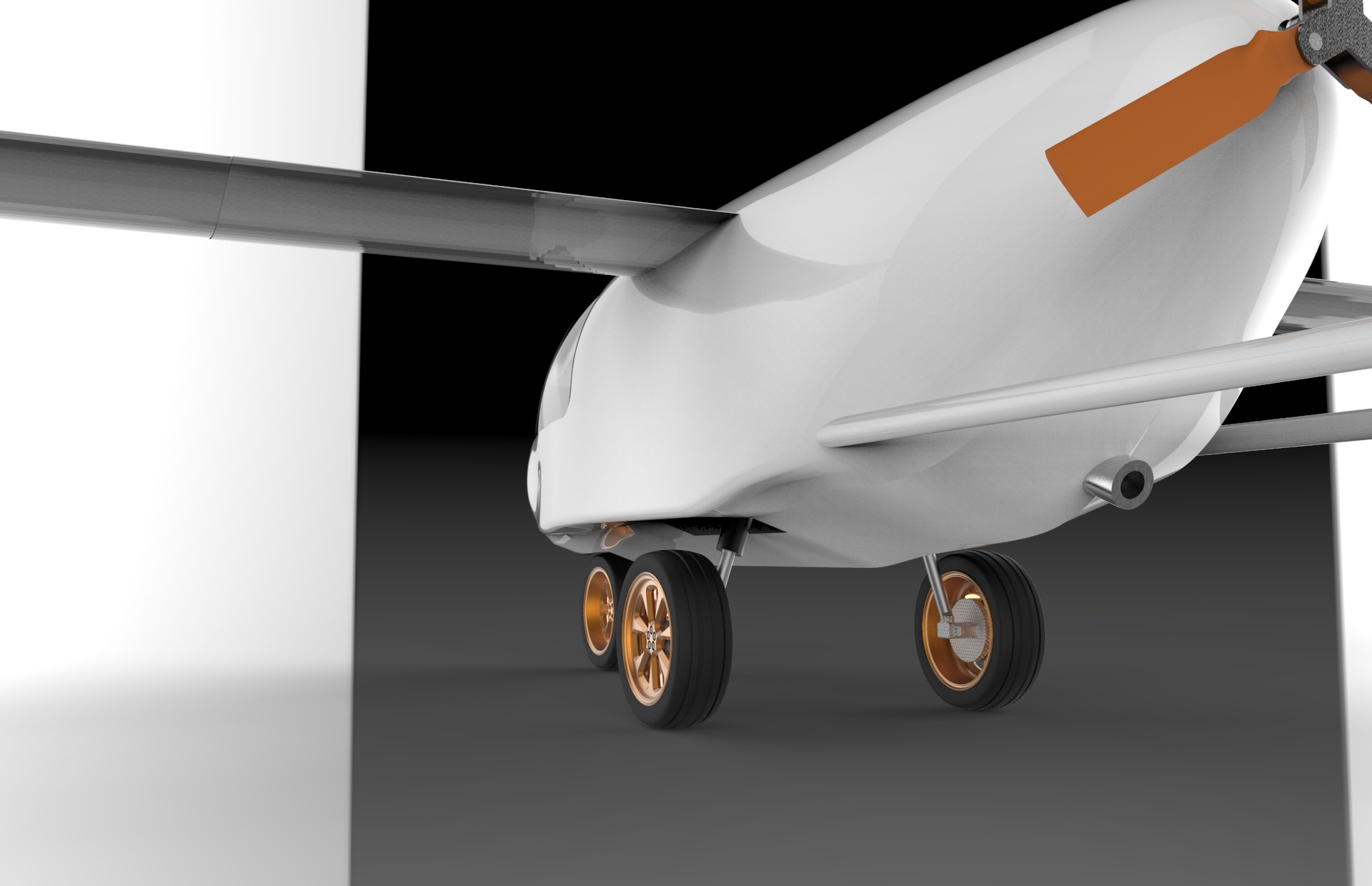

As part of the final year of my Aerospace Technology degree at Coventry University I had to complete an individual project. The project I selected was to design a concept for a 'Tri-vehicle', which is a vehicle capable of operating on land, air, and sea.  Overall Project Aim: Produce a concept for a tri-vehicle suitable for civilian use on land, sea, and air. This will be in the form of a CAD model, technical drawings and a subsequent report outlining all findings related to the project and the vehicle design. This vehicle must have characteristics and specifications outlined to allow for the vehicle to be designed to have a practical purpose. These will be decided upon as part of the design process.  Primary Objective:  Produce a conceptual design for a tri-vehicle including a CAD model  Secondary Objective:  Evaluate the capability of the design  Tertiary Objective:  Produce technical drawings of all major components  All objectives were completed with a final design being presented to the project supervisor and a second assessor. The technical report is available from here. (The file size was too large to uplaod to the academy.3ds.com website)  https://www.dropbox.com/s/3949eokgll4zbku/Final%20project%20report%2022%204%2016.pdf?dl=0
