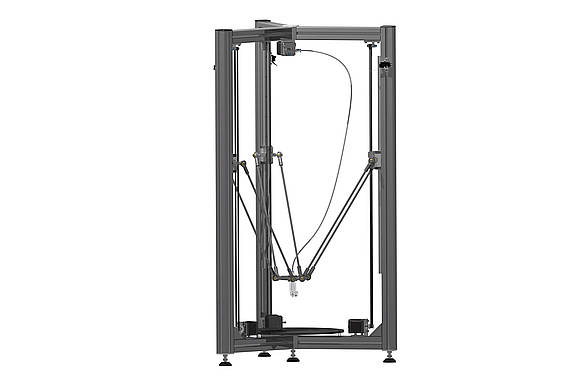

Side view
Top view
Platform / header
Platform exploded view

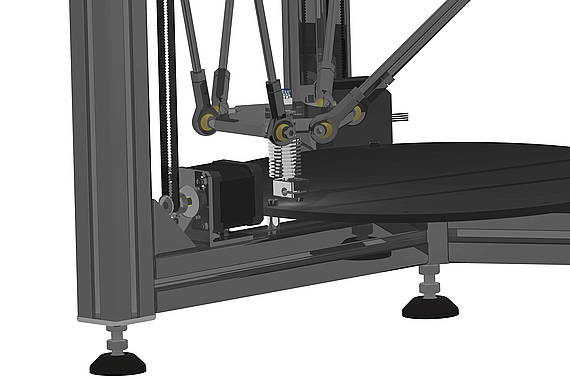

Bottom position

DELTA 3D PRINTER

Created on 2016.05.26 202 views
10
ABOUT
PROJECT TIMELINE

This is a project of a FDM 3D printer with the linear delta manipulator kinematics. The main objective of this project was to design a fully functional FDM* 3D printer (a rapid prototyping device). During the design process a lot attention has been drawn to use as many components available on the market as possible. As a result there are only 3 special components. To examine the design, a motion simulation has been carried out with clash detection using a Digital Mockup tool in CATIA V5 R20. The project has been completed and now awaits for a physical realization.

* FDM - Fused Deposition Modeling
