Design Of CNC Milling Machine Structure

For machining Medium Density Materials

Created on 2018.06.15 887 views
9
ABOUT
PROJECT TIMELINE

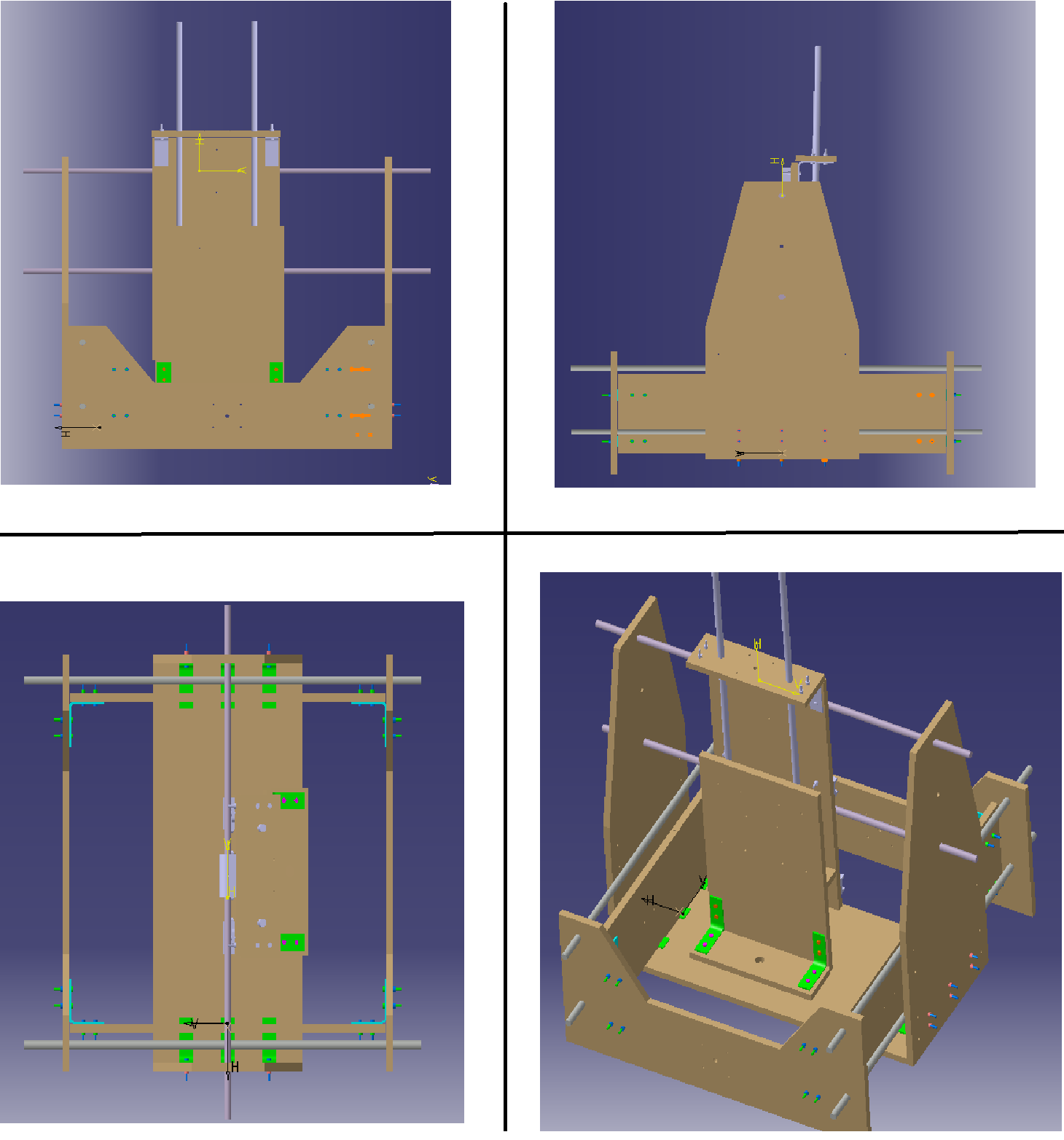

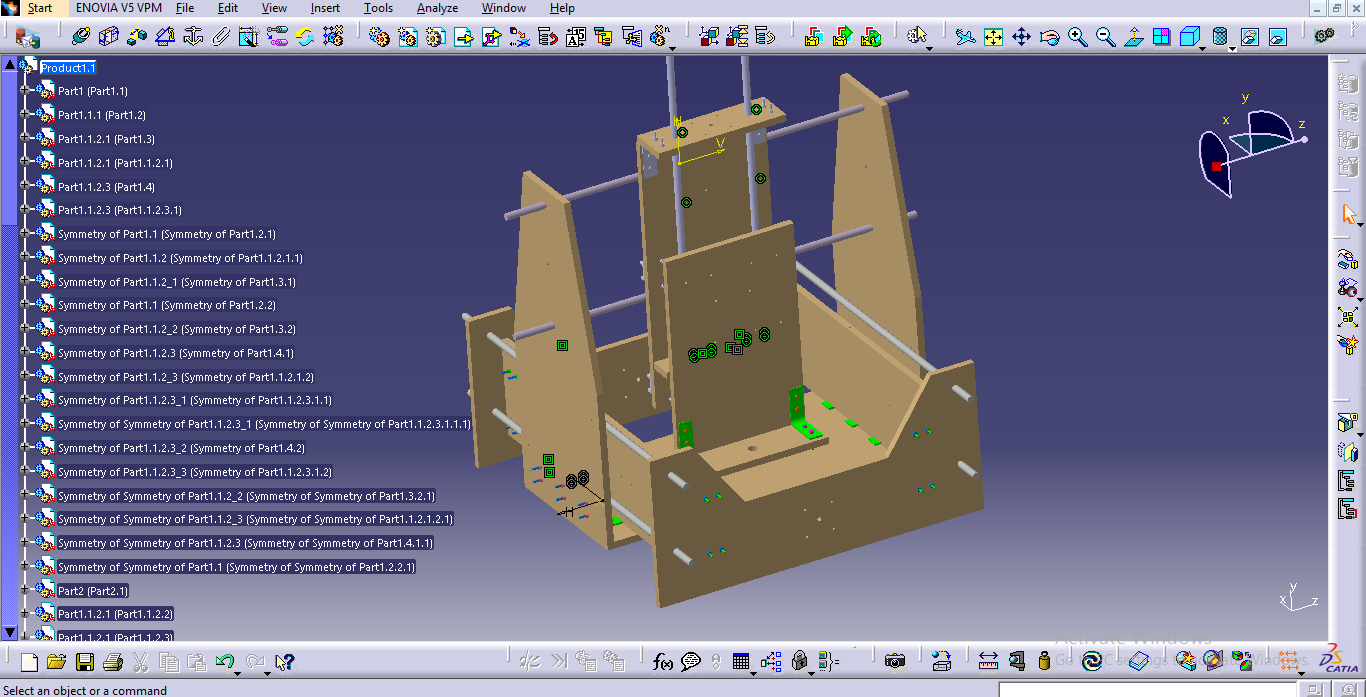

I designed the CNC Milling Machine Structure in Catiav5 Tool in the Final Year of my B.tech Mechanical Engineering. ABSTRACT Increase in the rapid growth of Technology significantly increased the usage and utilization of CNC systems in industries but at considerable expense. The idea of the fabrication of low-cost CNC Router came forward to reduce the cost and complexity of CNC systems. This project discusses the development of a low-cost CNC router which is capable of 3-axis simultaneous interpolated operation. The lower cost is achieved by incorporating the features of a standard PC interface with micro-controller based CNC system in an ARDUINO based embedded system. The system also features an offline G-Code parser and then interpreted on the microcontroller from a USB. Improved procedures are employed in the system to reduce the computational overheads in controlling a 3-axis CNC machine. You can find more at the following links on slideshare of my project thesis https://www.slideshare.net/saddagovardhan/design-and-development-of-automated-microcontroller-based-cnc-machine https://www.slideshare.net/saddagovardhan/automated-microcontroller-based-cnc-machine
Discover the team
Who’s behind this project
GR GOVARDHAN REDDY
Discover the solution
Software used for this project
9
Project Timeline

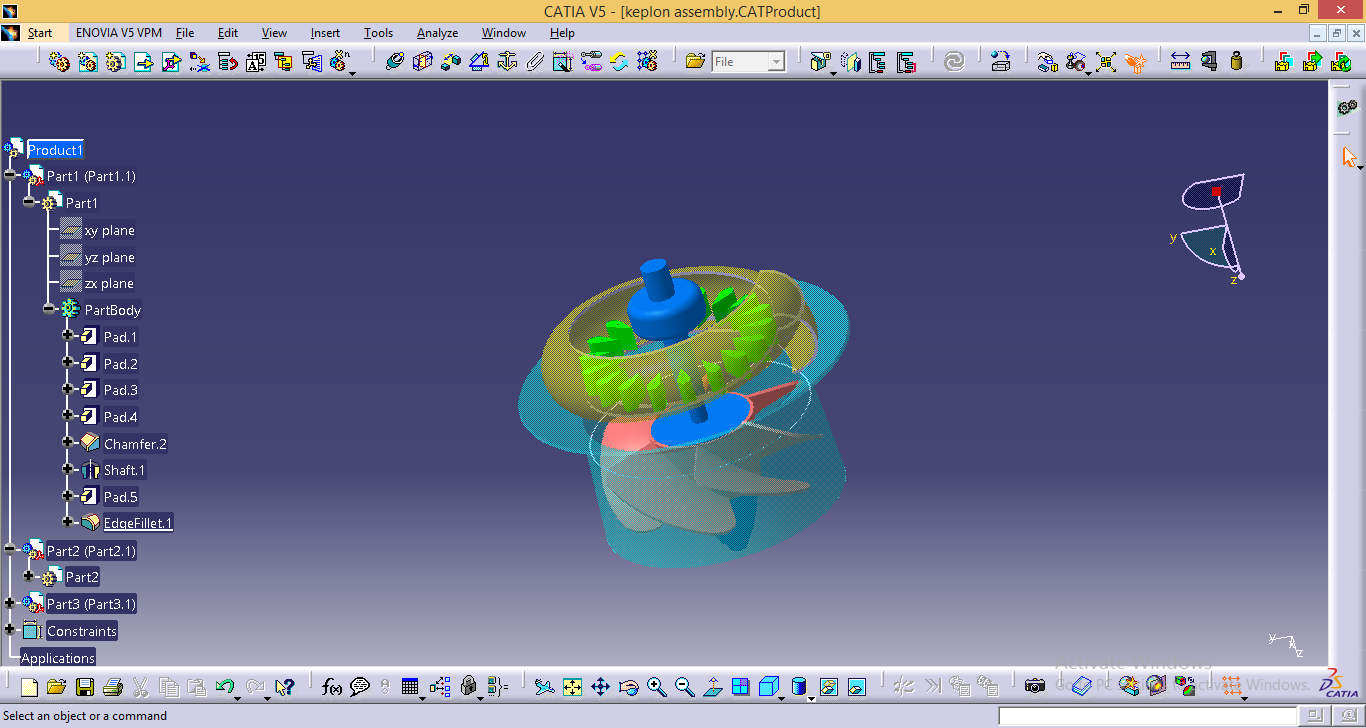

Kaplan turbine project was done at my 3rd year of my graduation .this project includes design of turbine blades, spiral casing, hub and draft tube with CATIA V5 Designing tool
