The Recycling Site Overview
Assembly Bom
The physical Dissassembly area
The pyrolytic reactor

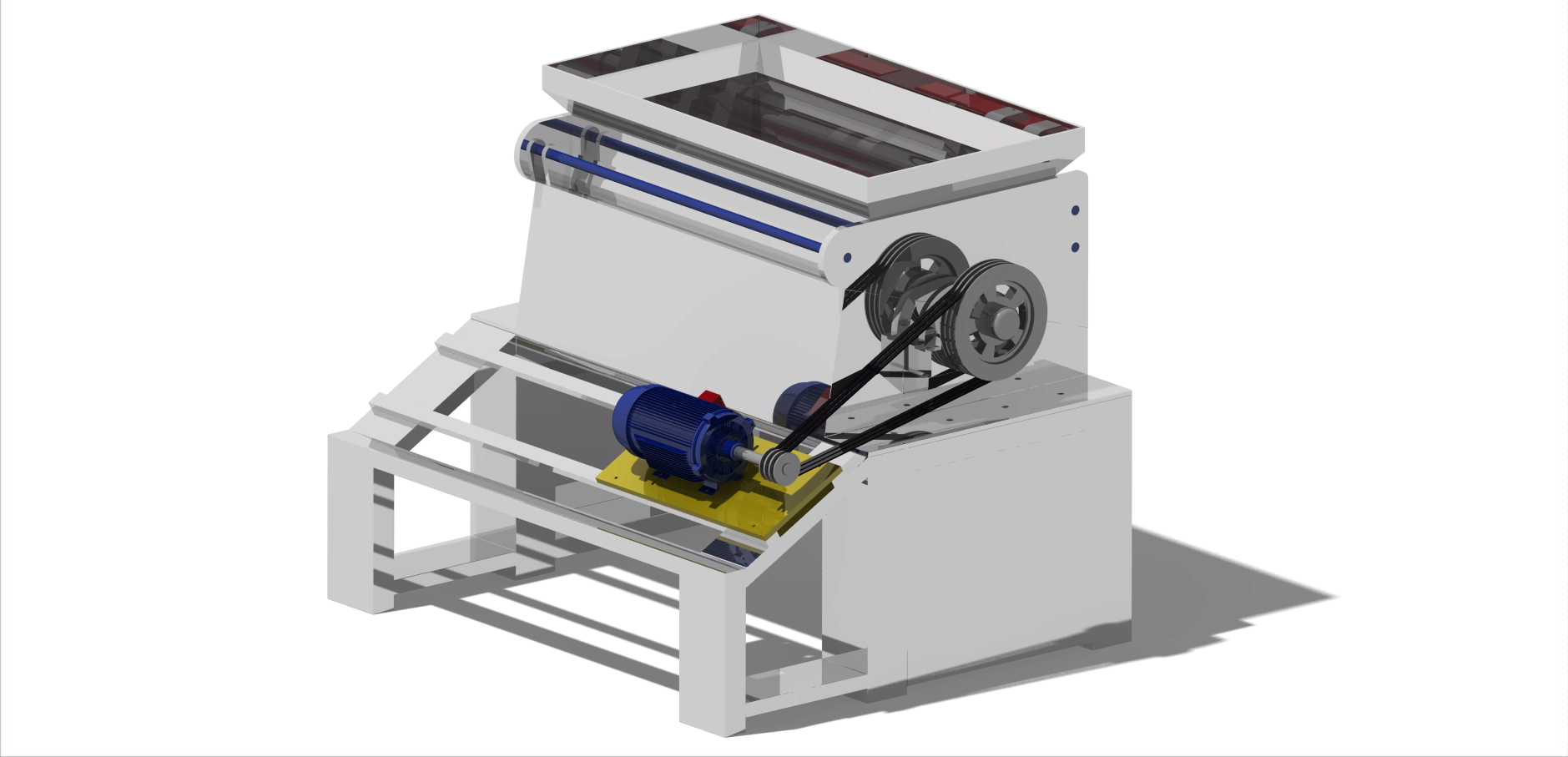

Twin shaft shredder
Parametric Cascade Inclined Screens
The mechanical separation area
Pyrolytic reactor section
Pyrolytic reactor
Twin shaft shredder section
Workbench
Parametric Conveyor
Chemical treatment area
C-SI PV panel exploded view
Recycling site
Plant layout
Gas treatment equipment
RE-PV logo
Impact crusher
The mechanical shredding area
Chemical treatment close up
Parametric Belt Conveyor
The overview of the procedure- diagram

DEVELOPMENT OF A THREE DIMENSIONAL INDUSTRIAL PRODUCTION LINE SIMULATION FOR CRYSTALLINE SILICON PHOTOVOLTAIC PANEL RECYCLING

Winner Jury Prize - 2015 edition

Created on 2016.05.30 354 views
11
ABOUT
PROJECT TIMELINE

Power generation from photovoltaic (PV) cells is a well-established and promising technology that takes full advantage of solar energy, which is a renewable energy source. Although numerous methods of PV recycling have been proposed worldwide, Greece has not taken any serious corresponding action until now. In global scale, the largest market share (≈90%) is based on c-Si as a semiconductor for the PV cells. Moreover, estimations expect that the overall quantity of PV waste in Europe will reach 3.500.000 tones until 2040 while in Greece, until 2038 the amount will be in the range of 264.000 tones. As a result, it is essential to propose a unified management of PV end-of-life (EOL) process, in order to achieve a successful recovery of materials such as silicon, aluminum, silver and glass. The scope of this paper is the simulation of an integrated c-Si PV recycling process, applicable to the industrial level, with the use of CATIA software. The design of this recycling process is parametric, in order to allow the location and sizing configuration of each machine and installation type that can be used.
