Lego Purdue Belltower

A CATIA V5 Project

Created on 2018.06.18 162 views
1
ABOUT
PROJECT TIMELINE

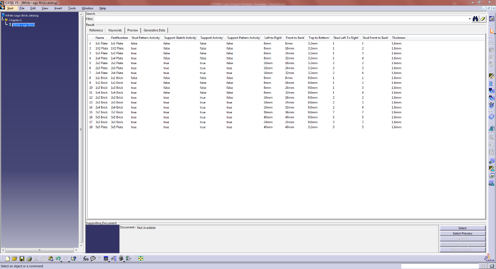

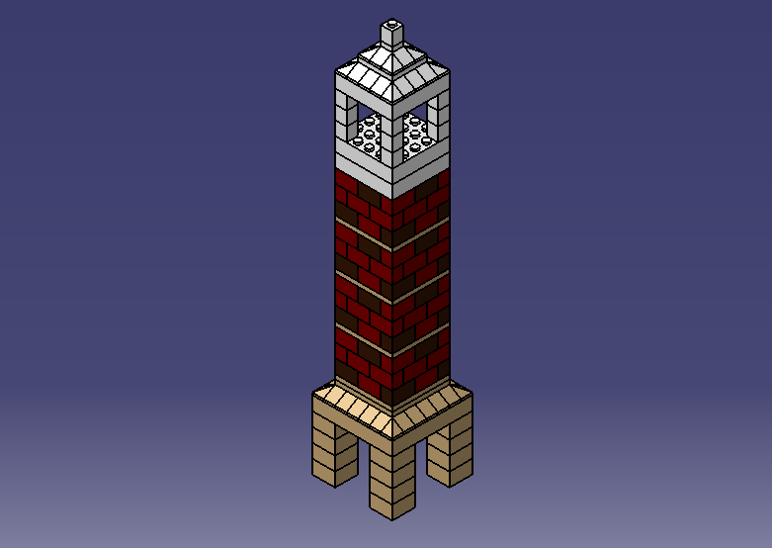

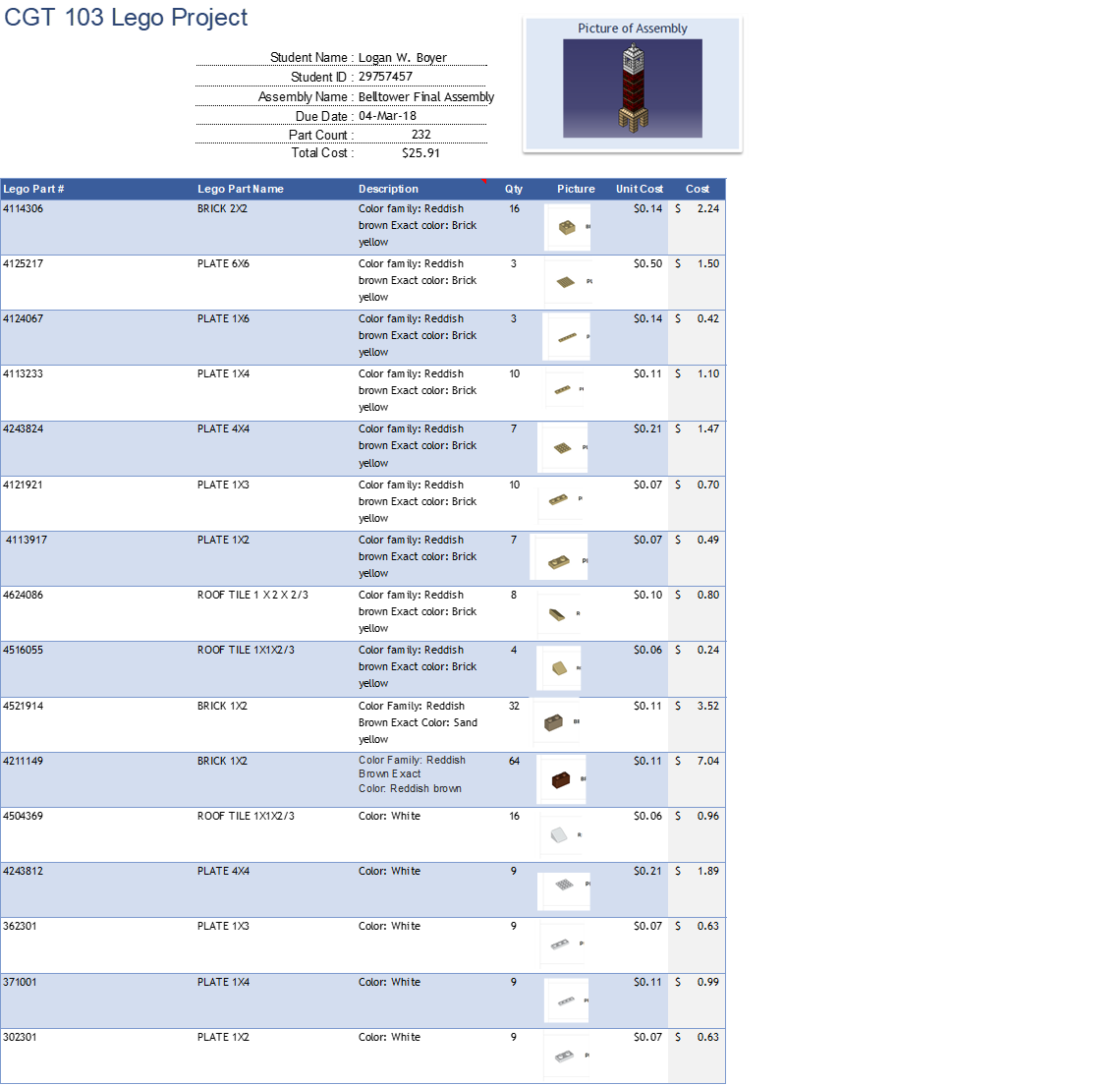

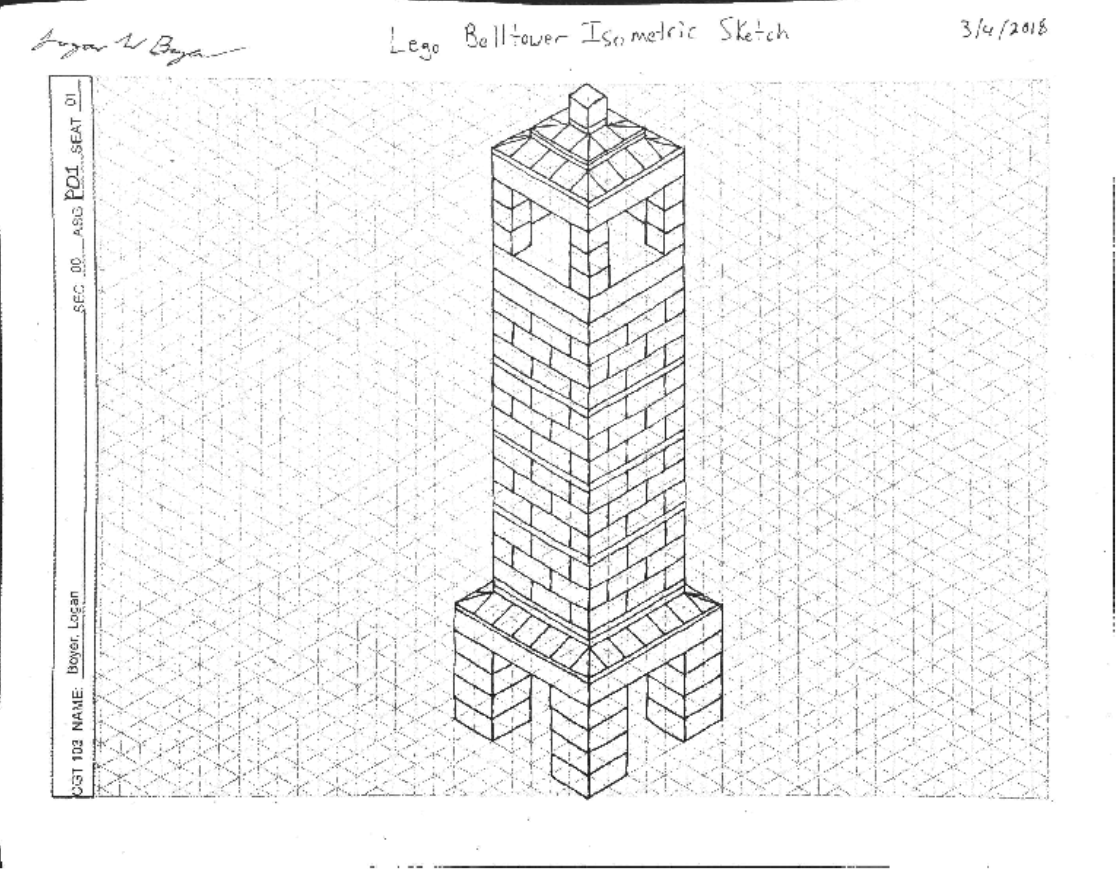

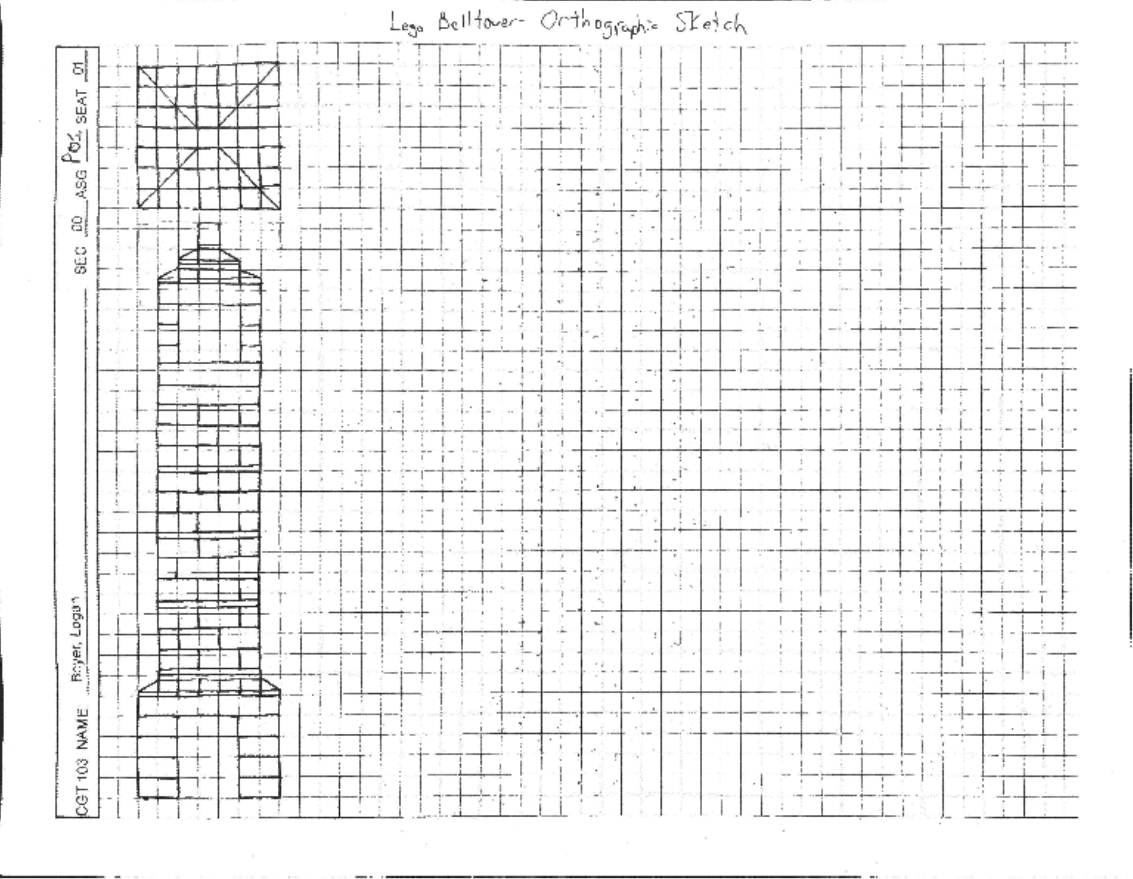

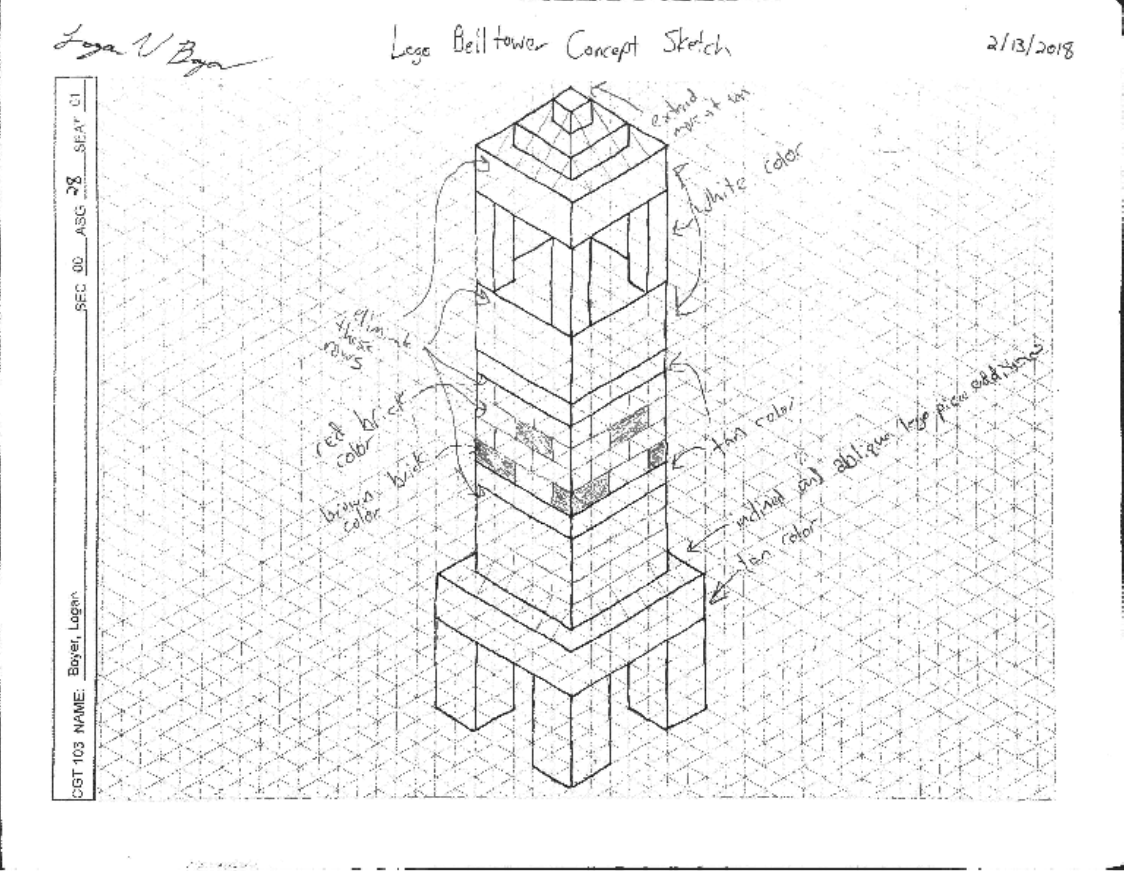

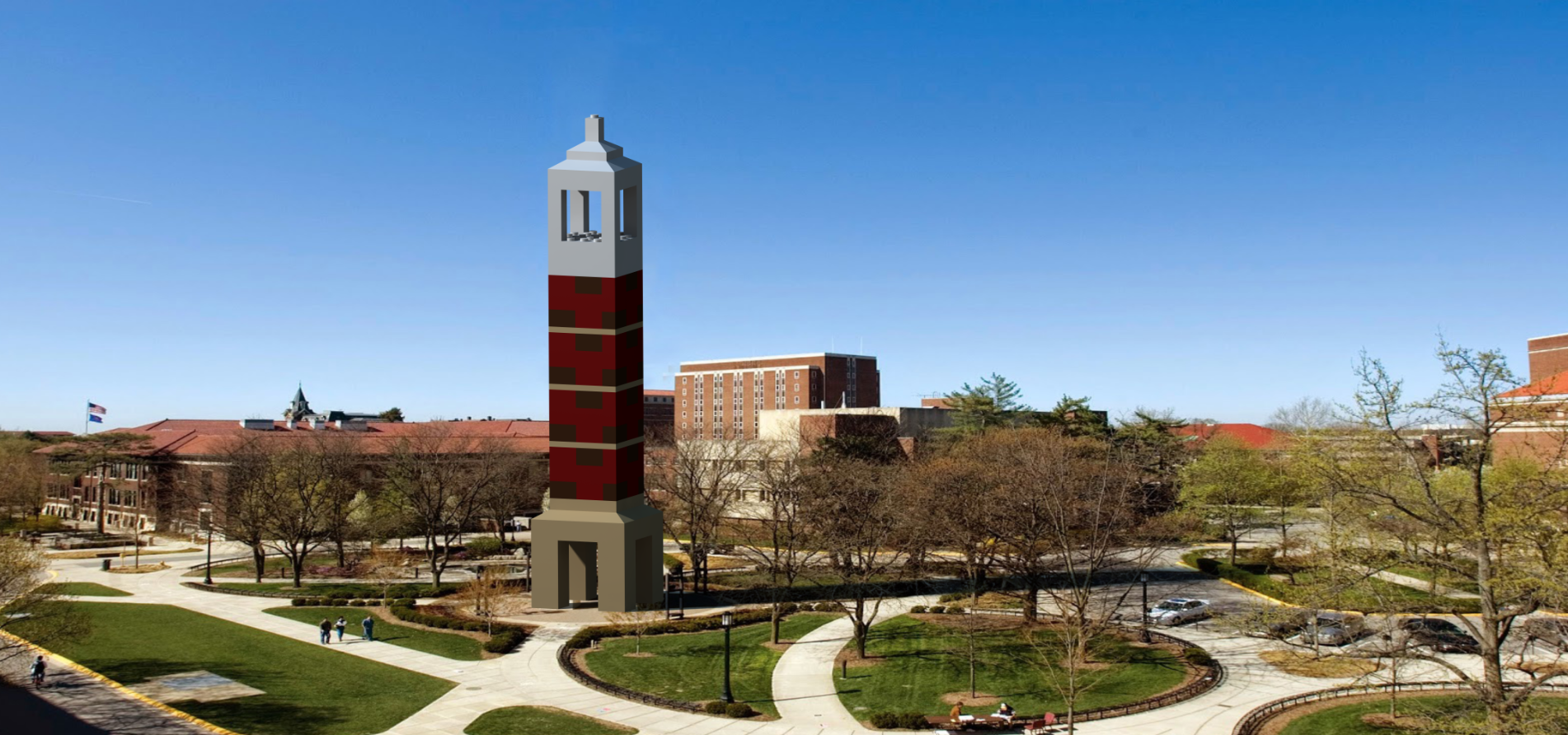

I created the Lego Purdue Belltower in CATIA V5. I created a basic Lego piece driven by parameters and then created a design table off those parameters. I designed a catalog from the design table to select the Lego piece and specific color that I wanted in my design. I designed three sub assemblies and then merged them together with constraints for the final result.  I then created a Digital Mockup for the fitting simulation that you can see in the Youtube video. I presented my project at the Community Of Experts (C.O.E) conference in San Diego in 2018 to a panel of judges and an audience.
