Parametric CAD Model Of Nasa CRM(Common Research Model)

Created on 2018.06.19 320 views
30
ABOUT
PROJECT TIMELINE

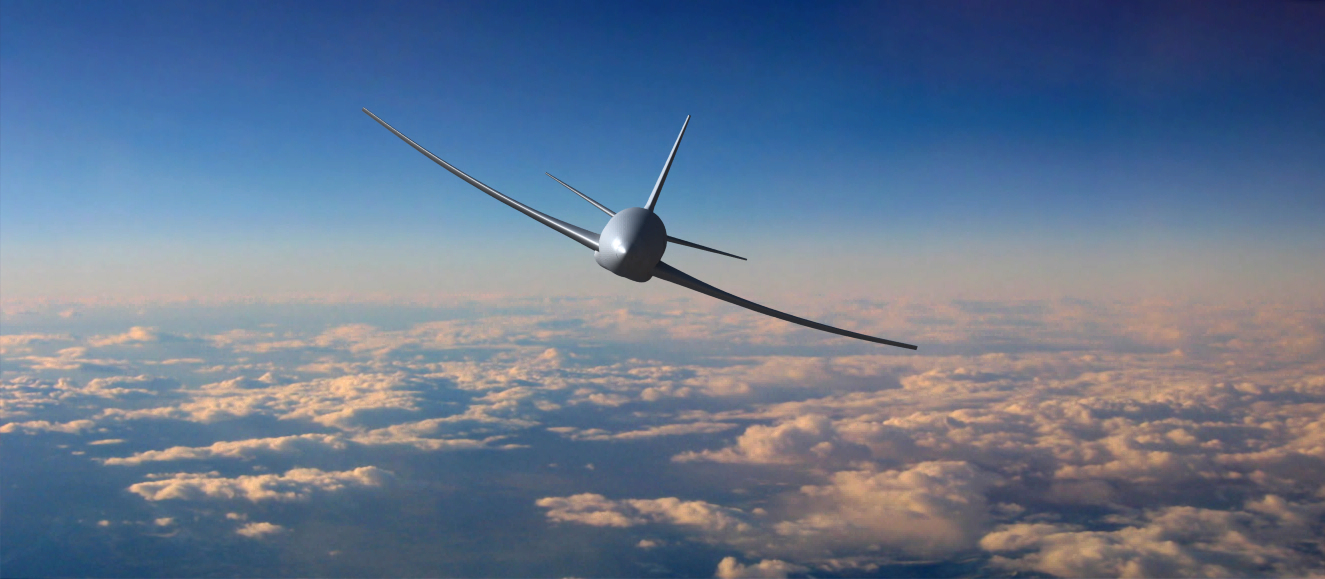

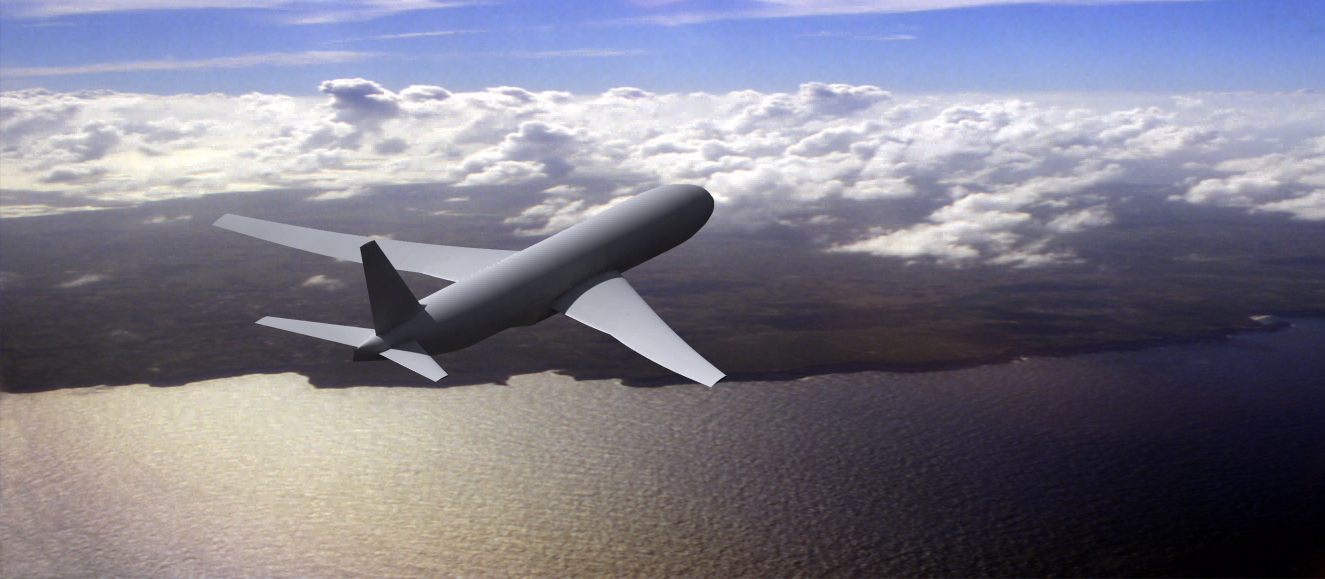

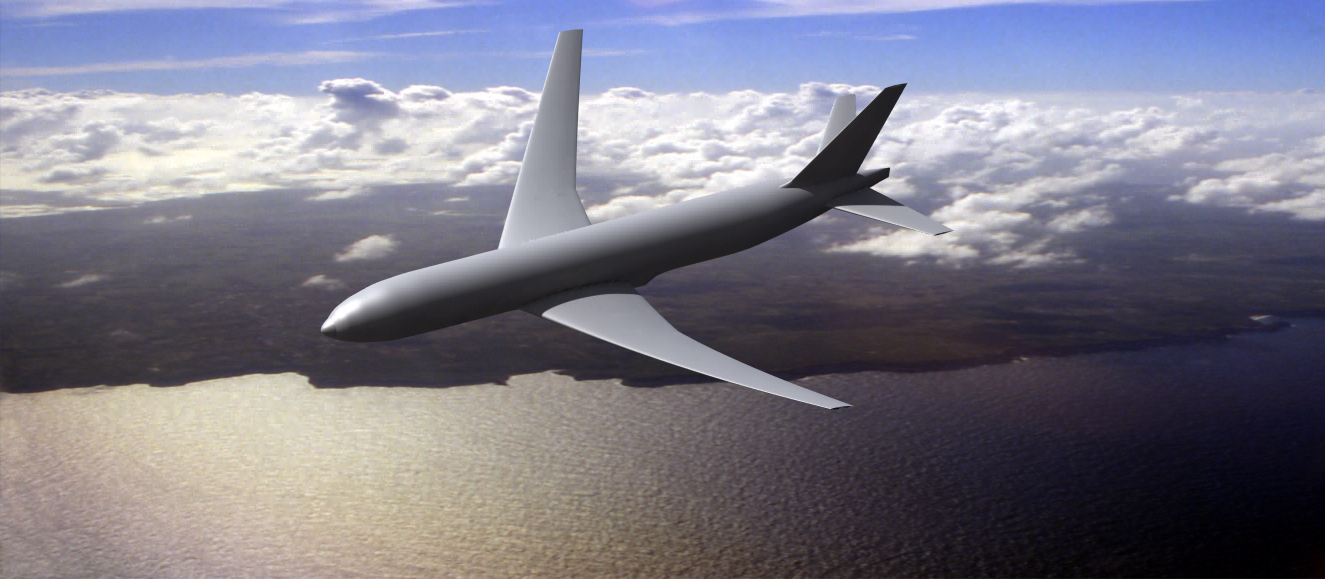

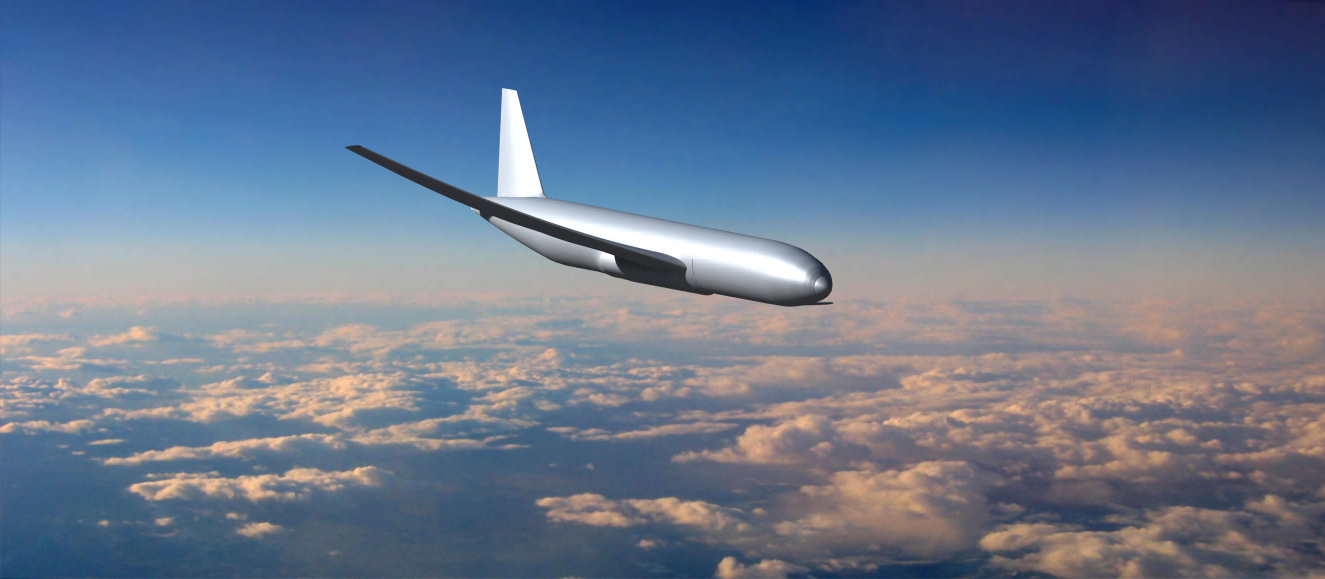

The project was about building the parametric CAD model of NASA CRM by using the Dassault Catia V5 software. The Common Research Model is an open source aircraft model that is used to study and understand the behaviour of the Aircraft. Before making this project the suite of CRM consist of only Finite element models and computational fluid dynamics models so, it was necessary to build the parametric CAD model of CRM, it can be used in future research activities.
Discover the team
Who’s behind this project
PR Parthesh Rajani
