Personal Project

Bevel Gears

United States Created on 2017.12.12 14 views
0
ABOUT
PROJECT TIMELINE

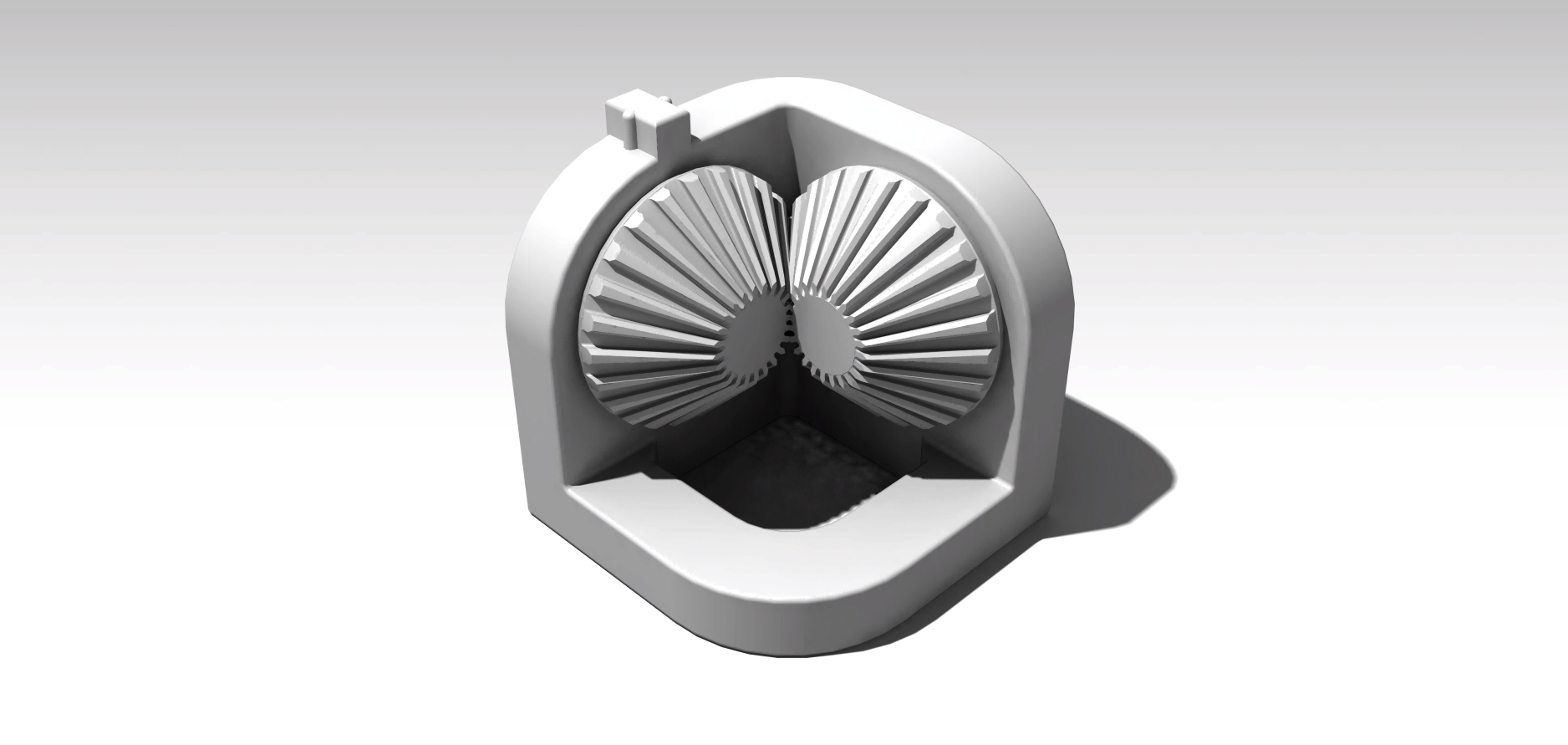

For my personal project for Intermediate CAD, I decided to create a bevel gear box. I have always been very interested in how gears and gear ratios worked (this knowledge is very useful in robotics and in engineering overall). I have designed regular gears in CAD before and I wanted to dip my toe into the realm of bevel gears (gears used to change the direction of the output). They are commonly used for transmitting power 90 degrees, which is what I designed these two to do. All of the pieces are assembled using the Assembly workbench and all of them were designed using Part Design and Sketcher.
