Pratt & WhitneyTurbojet Engine

Turbojet Engine

India
Created on 2019.04.24 61 views
1
ABOUT
PROJECT TIMELINE

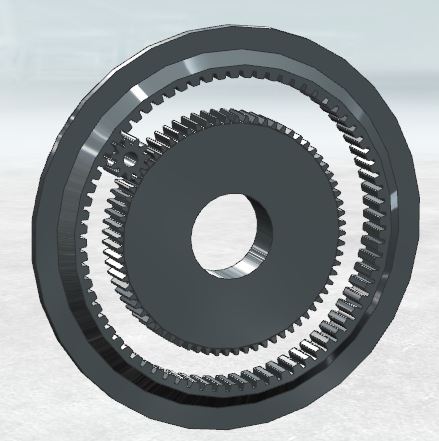

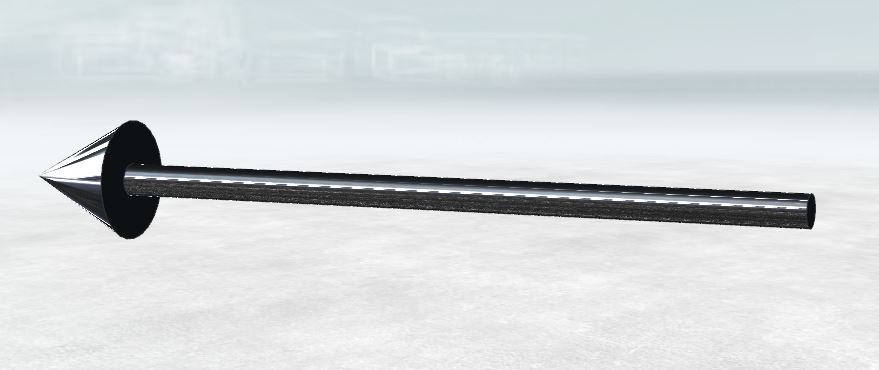

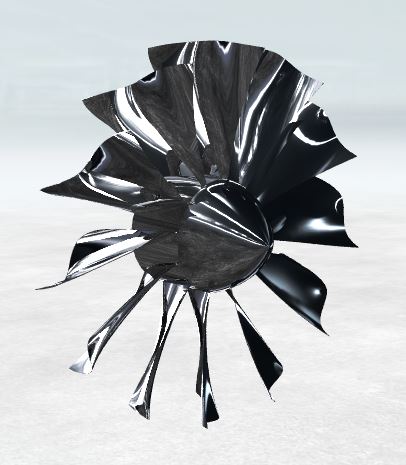

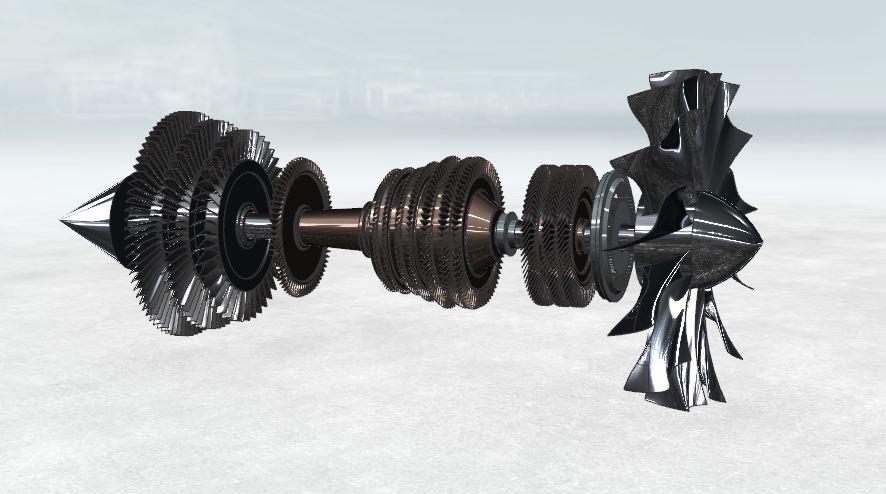

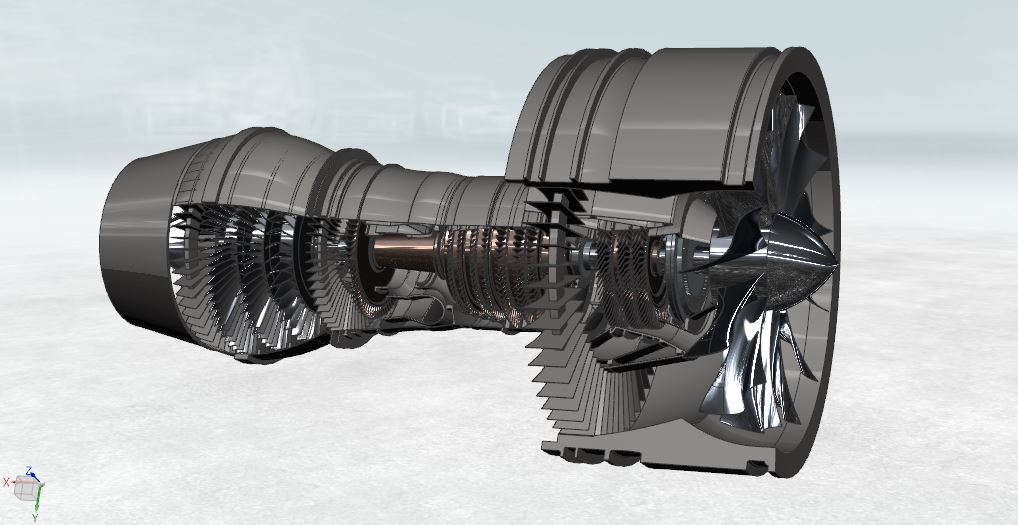

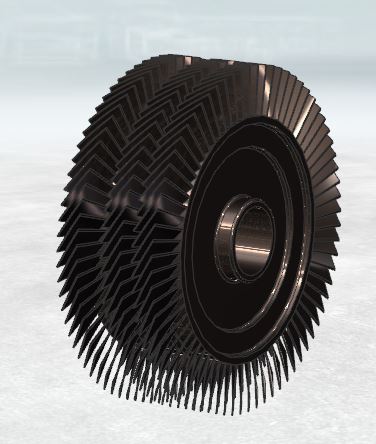

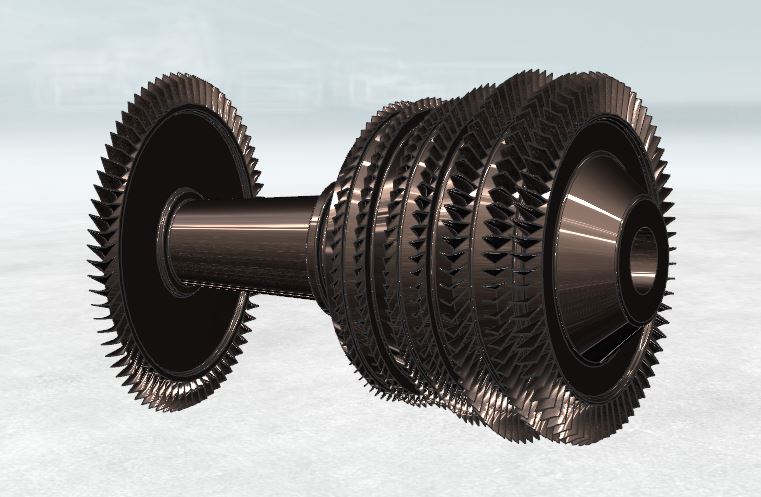

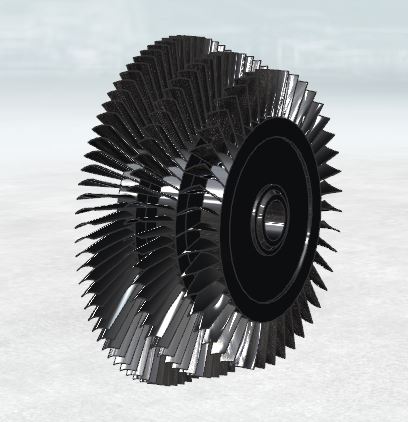

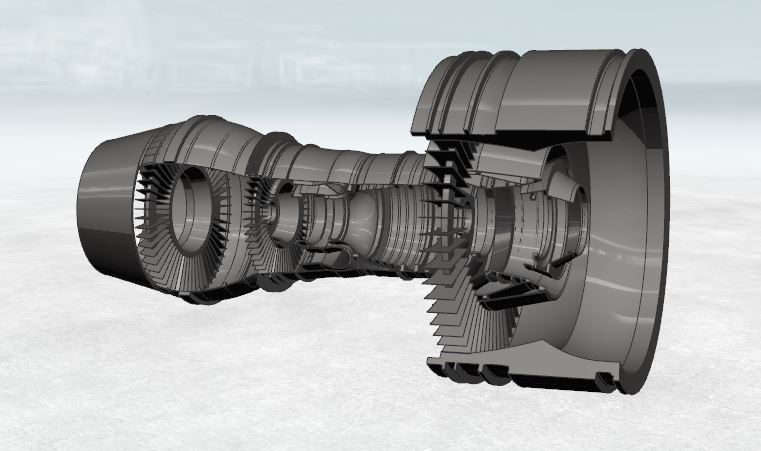

The Turbojet Engine has been obtained by going through part modelling of Outer casing, Shaft, High bypass fan, Stabilizer gear assembly which consist of stabilizer, sun gear and planet gear, High and low pressure compressor, turbine. The parts where gone through rendering and finally assembled in Assembly Navigator.
Discover the team
Who’s behind this project
PR Parthesh Rajani
