Prototype of a level luffing crane

Created on 2018.07.24 179 views
3
ABOUT
PROJECT TIMELINE

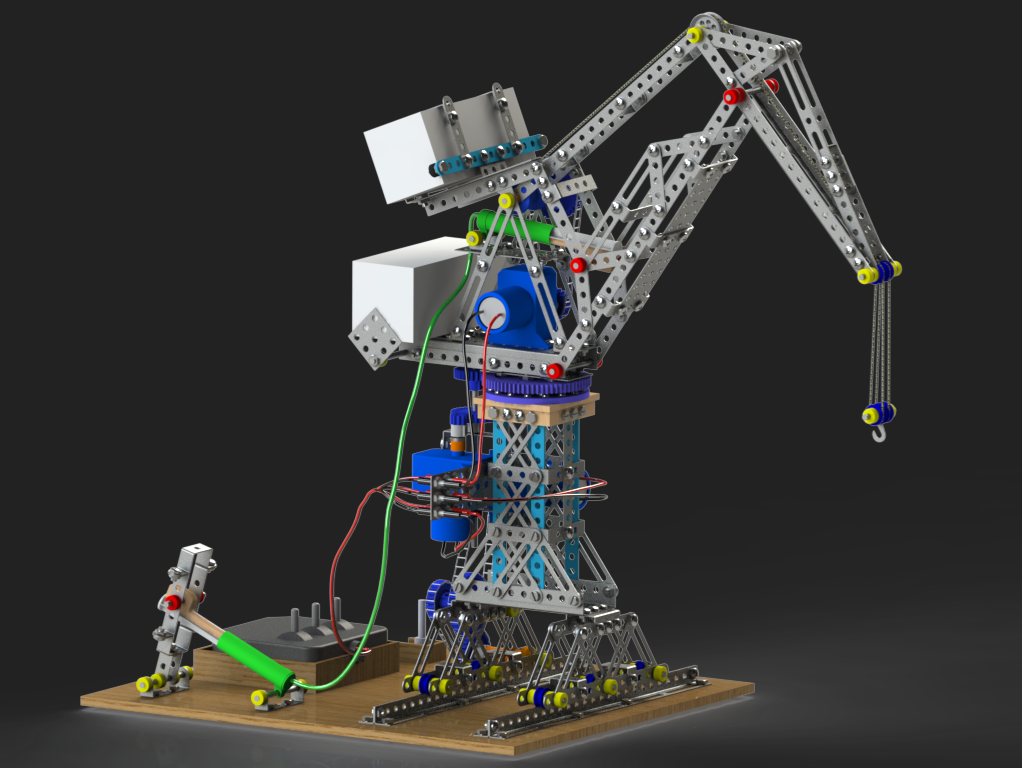

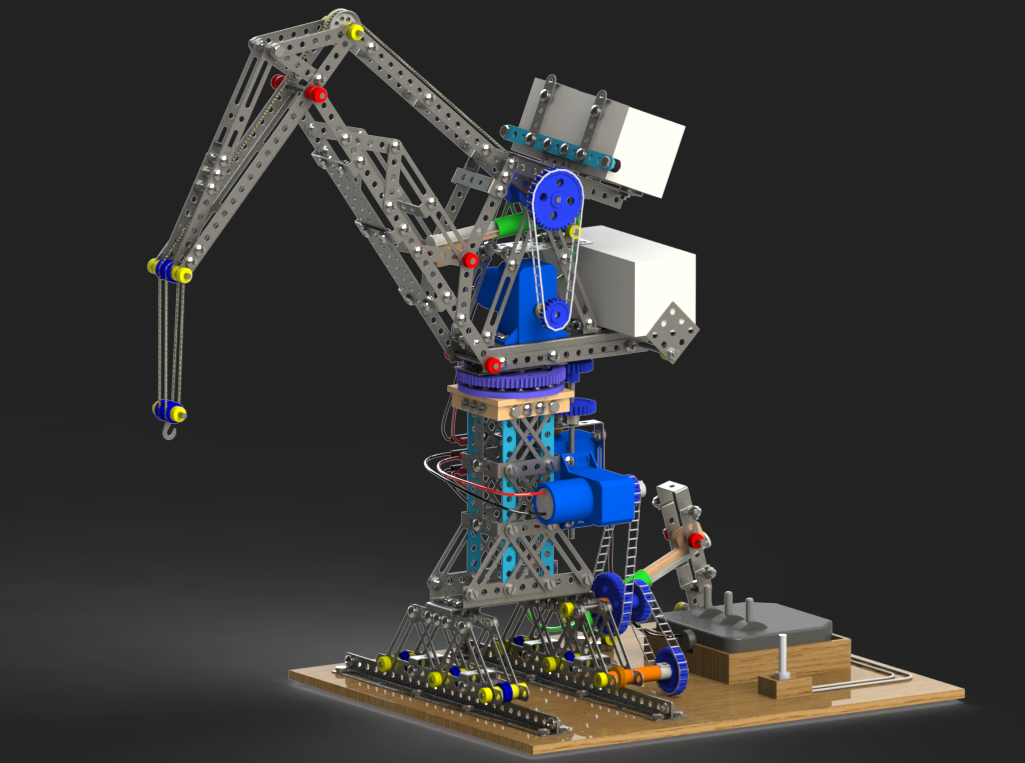

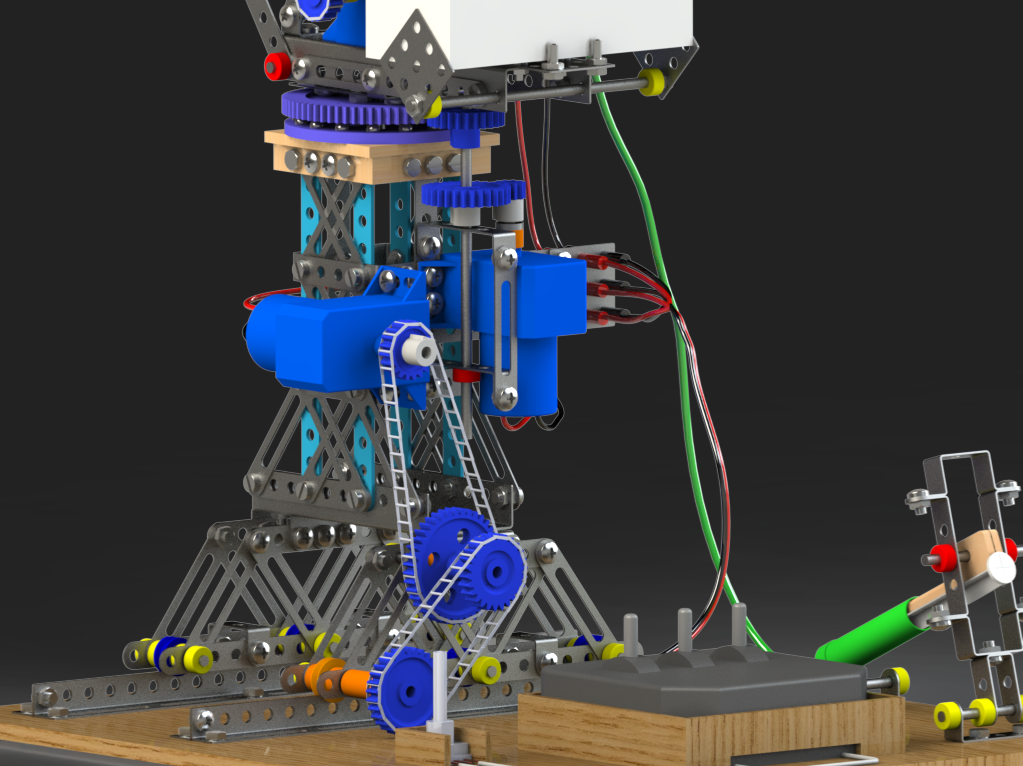

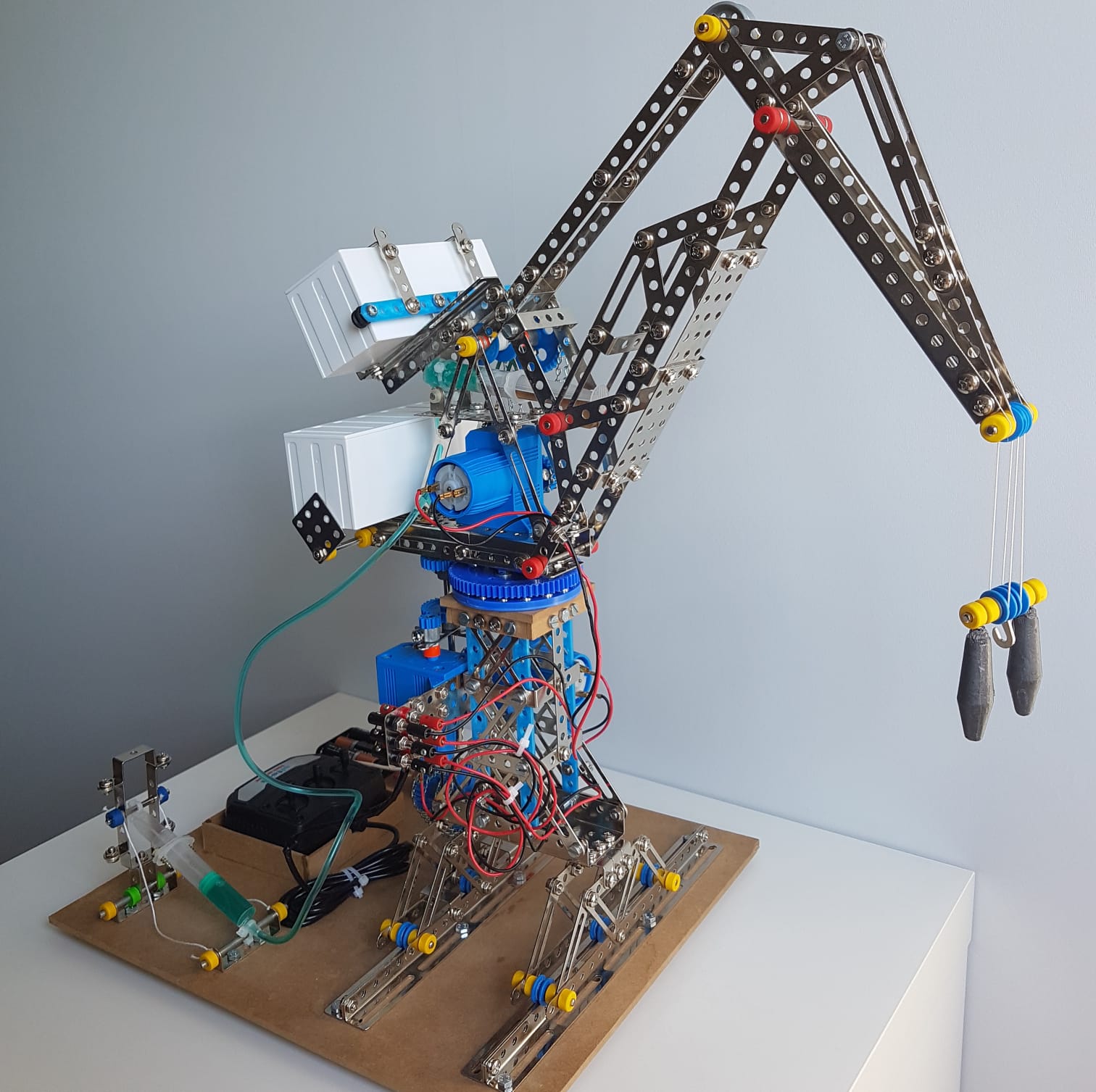

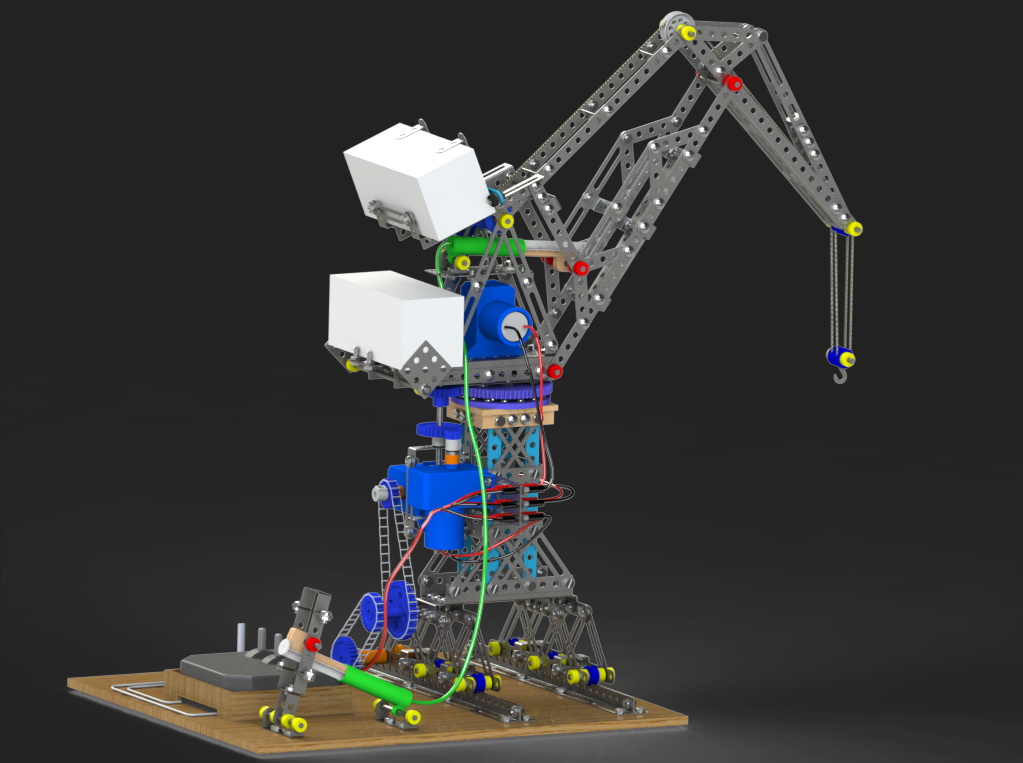

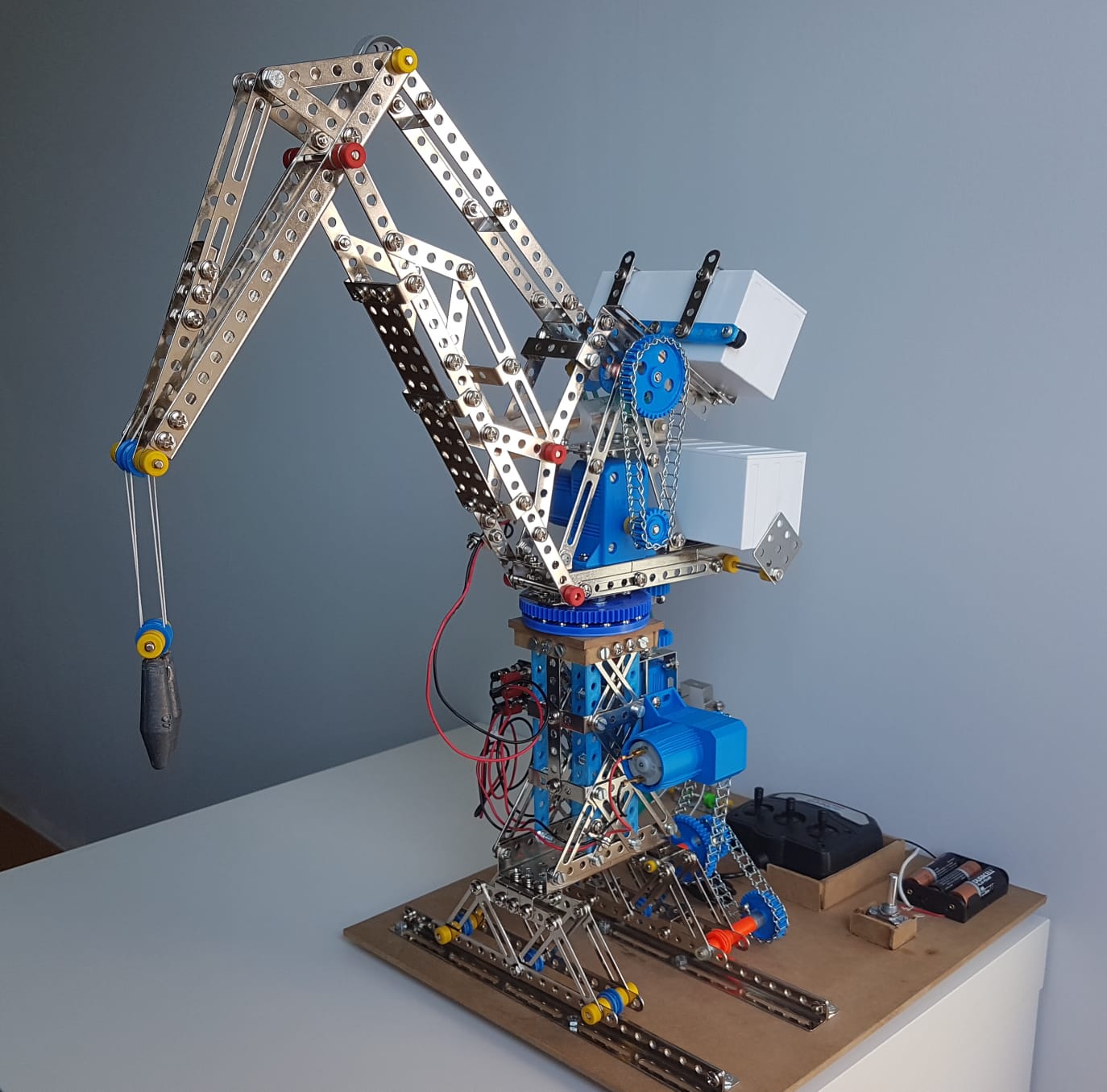

This project is about the design, calculation and assembly of a scale level luffing crane, employing Eitech modular parts in its structure. The 3D modeling is made using Solidworks software, trying to make it look like reality. It consists of 3 electric motors, which produce the movements of translation and rotation of the crane, as well as the lifting of the load. It also contains a hydraulic drive, which drives the mechanism of variation of range of the load. The maximum load supported by the crane is evaluated. For that, a study of stability is done first, where the counterweight and the maximun load in maximun and minimum reach are calculated as well as the stability without load. The strenght of the structure is analyzed in the most unfavorable cases, and appropriate modifications are made in the design in order to improve the values ​​of strength and stability. Besides, the plans are made and everything is assembled in a real model. Finally the data which have been gotten in the simulation are compared with the prototype.
Discover the team
Who’s behind this project
AL Abraham Lamela López
