REVERSE ENGINEERING OF PEDESTRIAN BRIDGE

A fully steel structured foot over bridge designed by using 3ds platform

India
Created on 2019.06.25 245 views
3
ABOUT
PROJECT TIMELINE

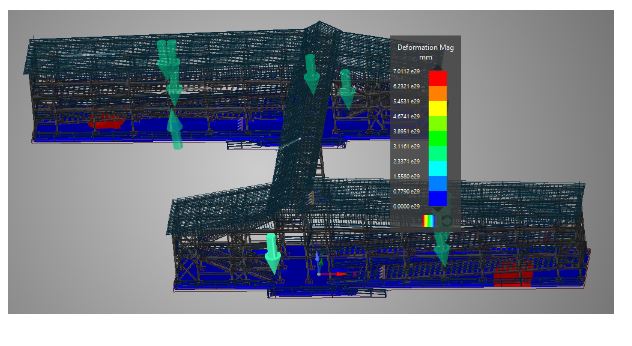

We have designed a pre-fabricated steel structure foot-over bridge which contains more than 1500 parts of I-section, L-section, hollow beams and columns. Column, beam and other essential parts of this bridge is designed by using catia’s part design, where as assembly design is used to fix all the parts which forms a 2nd level of work and finally simulia platform is used to simulate the whole bridge. This 300ft long and 28ft tall structure is able to hold a load of approx. 150 people at a same time and is quite clear in separation of force and moments. Every “level 2” work is defined by giving a weld engineering connection with a complete fabrication by using weld design which takes this bridge to a level of perfection by using Dassault systems 3D experience platform.
Discover the team
Who’s behind this project
AS ASHWIN Sethy
Discover the solution
Software used for this project
