Smart Electric Vehicle Battery Charging and Swapping station

A state of the art EV charging plus swapping Station

India
Created on 2020.06.14 740 views
60
ABOUT
PROJECT TIMELINE

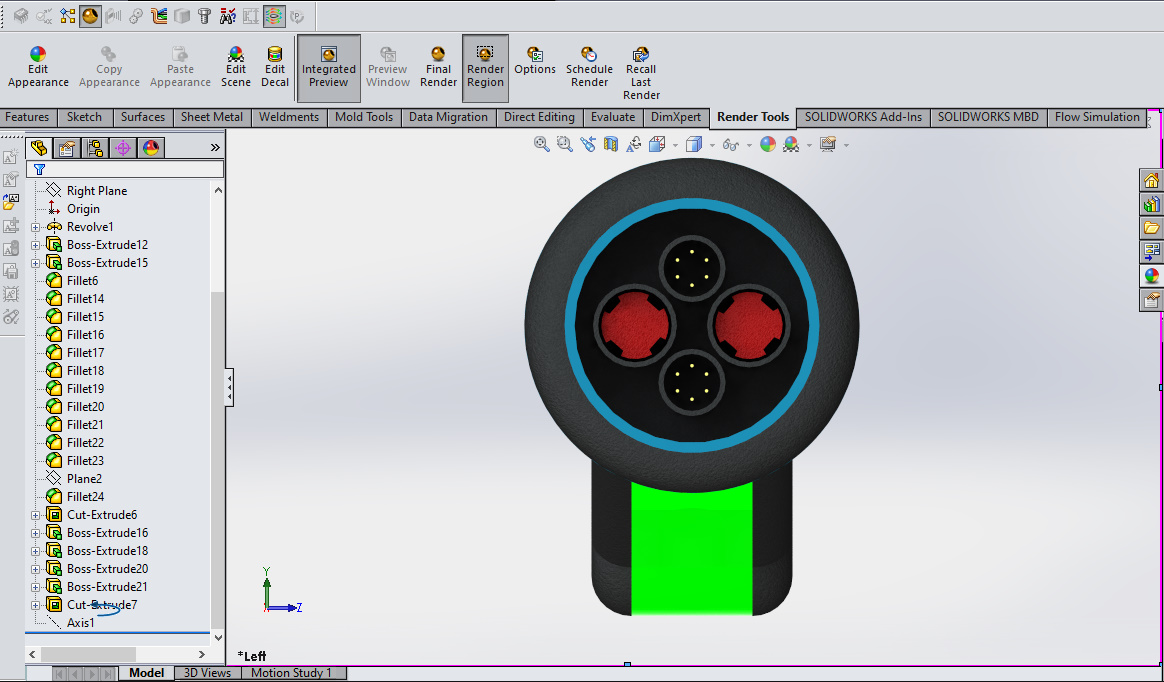

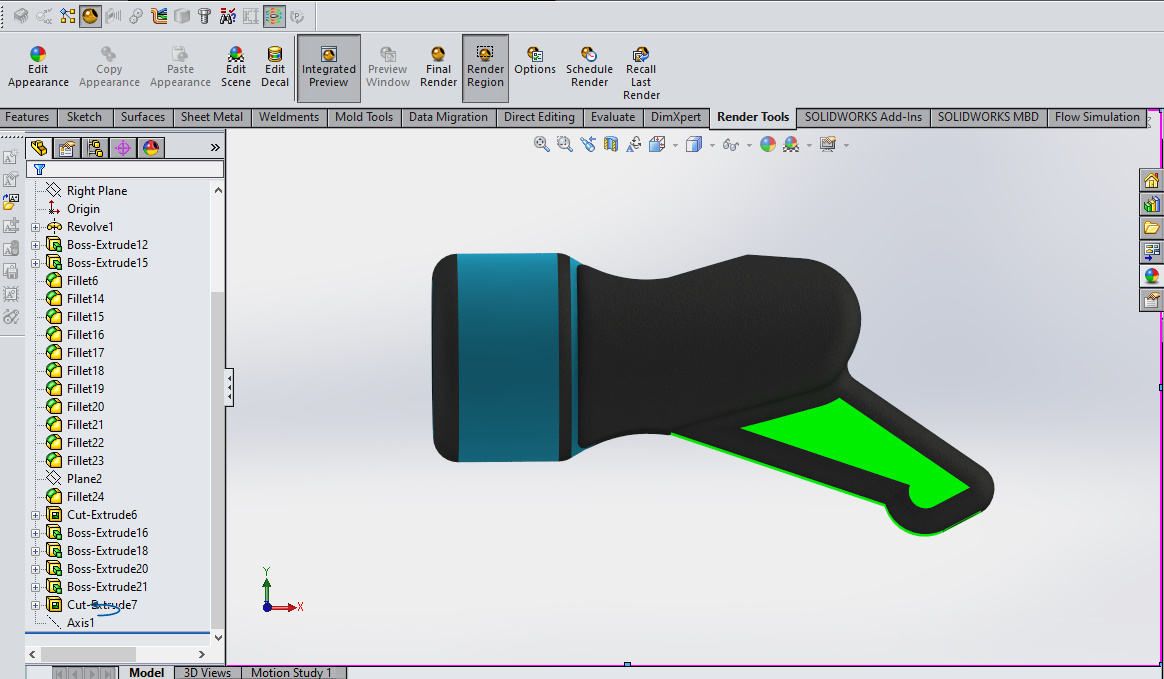

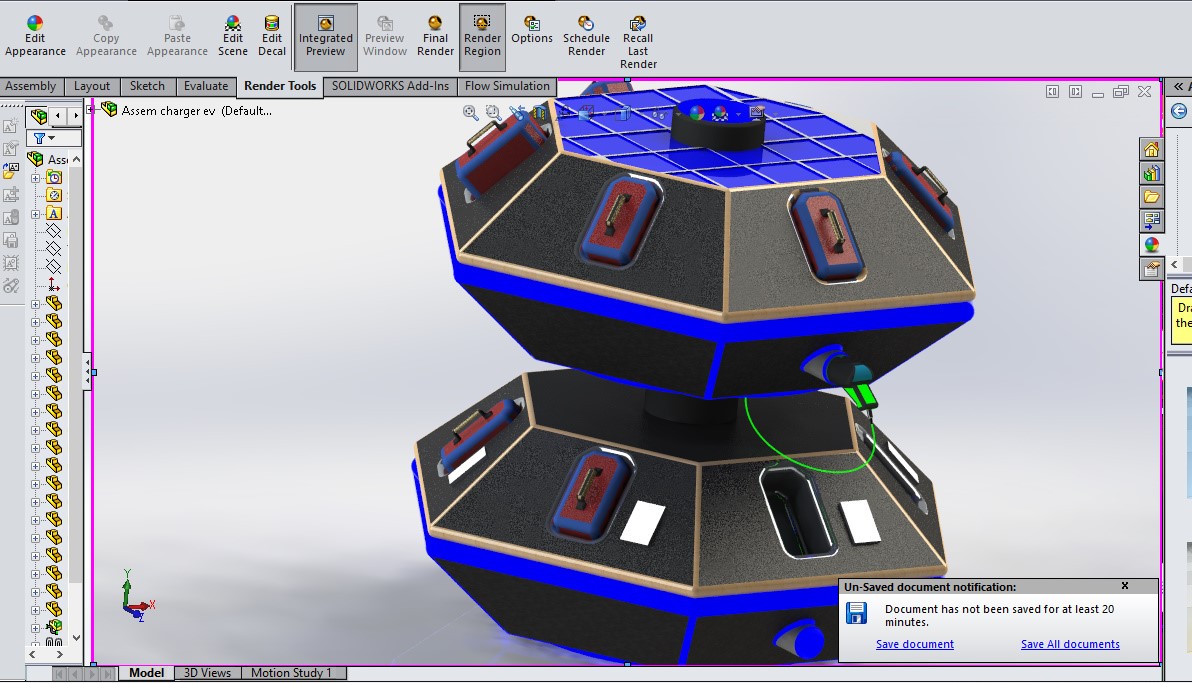

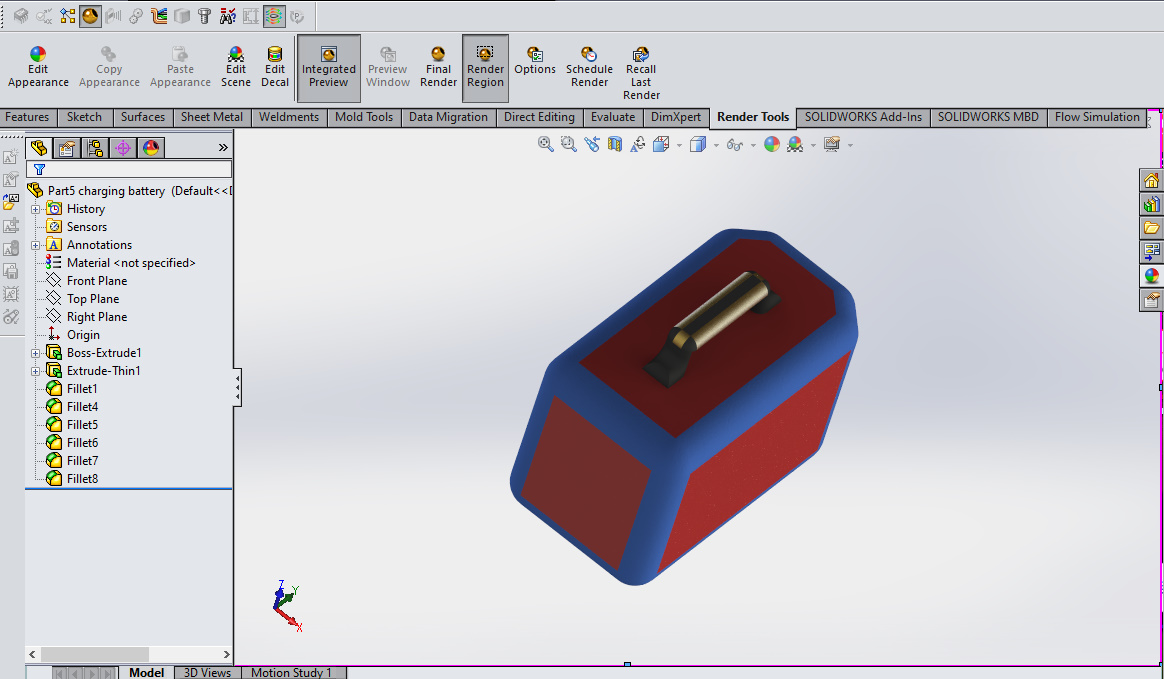

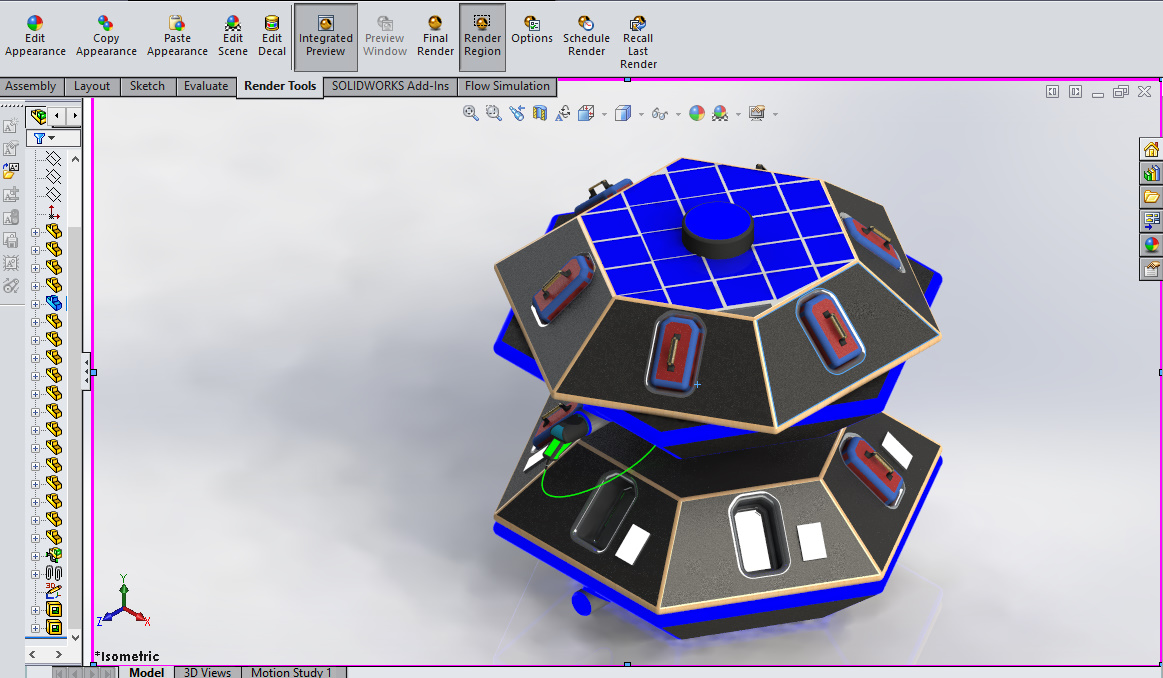

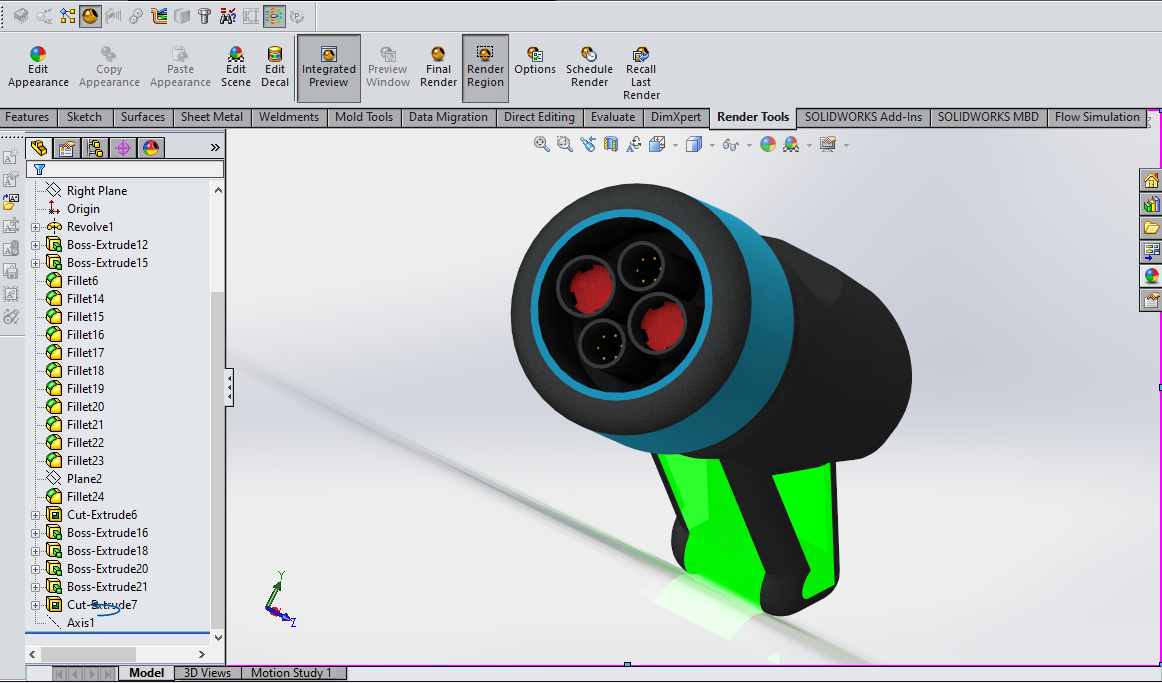

The design consists of a complete functional Charging Station for Electric bikes and Cars. In this design the inspiration is taken from the shape HEXAGON which has six sides. The six sides have been utilised to provide a charging tray for multiple batteries at once. Users can swap their batteries and also charge their batteries from this multipurpose charging station. Two hexagonal battery swappers are provided for charging and swapping more batteries. The user can simply remove the battery pack of his vehicle and enter the data on the station screen and swap another battery with same specification from the tray. The top tray in both hexagons are rotating trays for ease of reach for the user. The top tray rotates and user can easily pick or place his battery. If the user wishes to charge his battery instead he can do so by simply using the charging gun provided. The design of battery pack is also horizontal. Also, the charger provided is a Chademo type DC Fast charger which can charge upto 400 Kw (Courtesy-Wikipedia.) and charge a mid range vehicle(120 km range) in less than half an hour. This type is mostly used in Asia including India( Mahidra E2o). The design of the gun is of Chademo type. Also, a seperate Solar panel is provided at top for more extended recharge support and electricity provision. Thus, this project aims at making EV charging and swapping easier and all at one place. This is another stepping stone in achieving Sustainability and a Greener Earth!! #goElectric #goGreen
