V6 internal combustion Engine

Internal combustion engine parts CATIA v5

India
Created on 2020.05.21 878 views
19
ABOUT
PROJECT TIMELINE

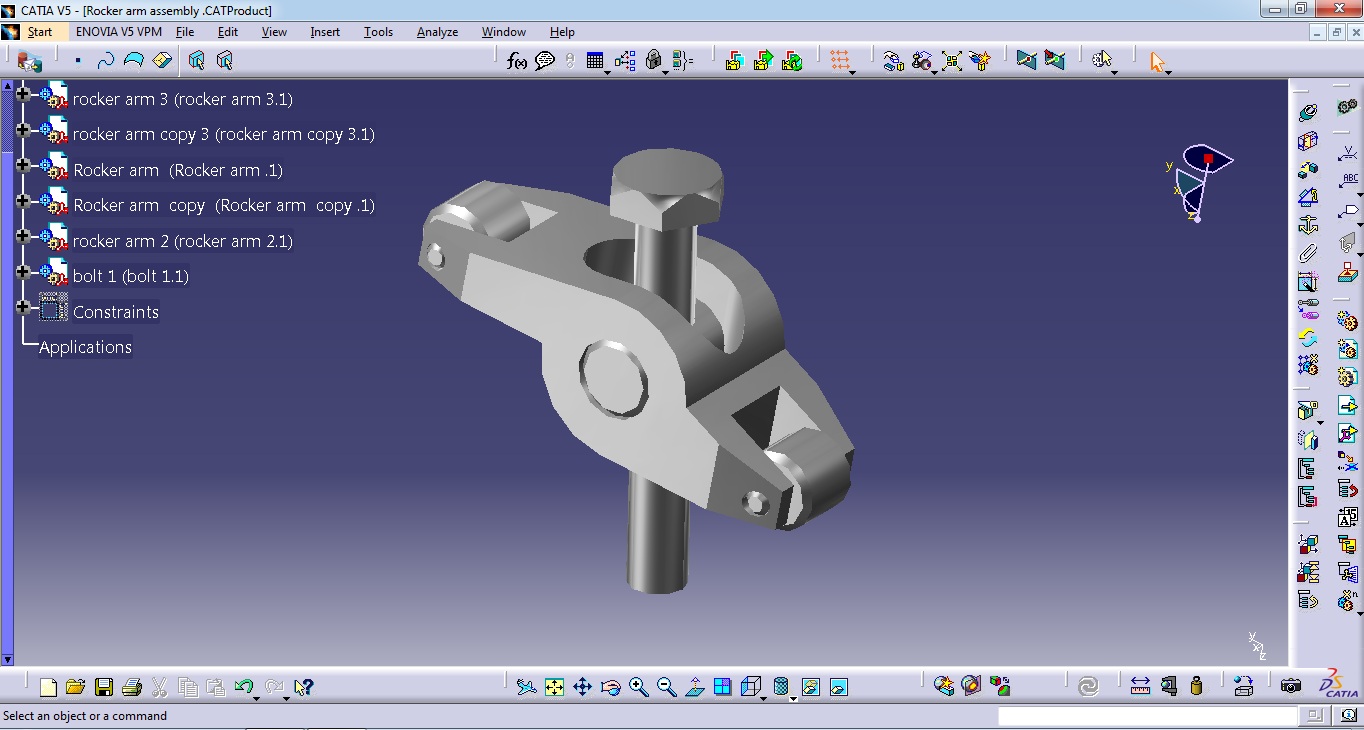

Hello , dear all . My project of the year 2020 is V 6 Internal combustion engine ,which is created on CATIA v5 tool . Almost 60 major parts created on catia v5 and all pictures with tree specification of parts. Video of this project will provided soon , still work is on going . these all parts are created on CATIA v5 and in the last whole engine assembly will available . 1. Piston  2. Crank Shaft  3. Engine Block  4. Rocker Arm  5. Cylinder Head  6. Exhaust Manifold  7. Air Filter  8. Cam Shaft  9. Valve  10. Rocker Spring  11. Belt Wheels  12. Intake Manifold  13. Front Cover  14. Oil Pan  15. Air Turbo  16. Valves Cover  17. C. Retainer  18. C. Bushings
