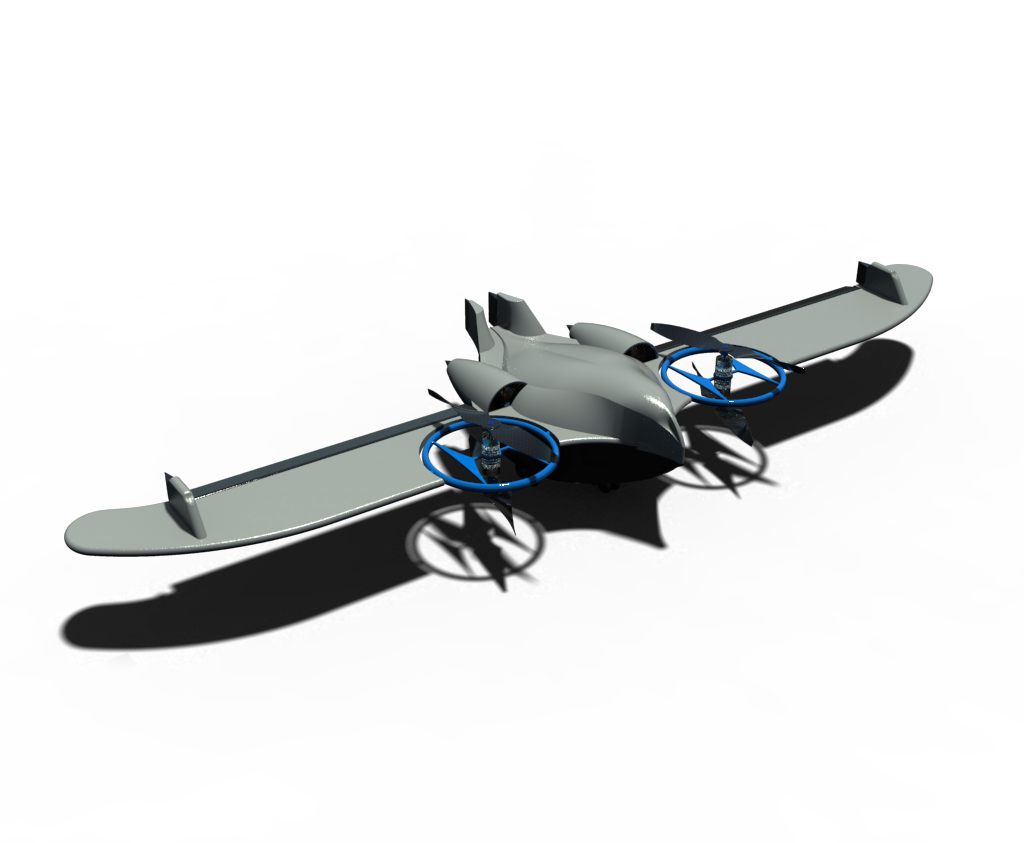

VYNATEYA TACTICAL ORDINANCE LANDER: Version 0.07

HYBRID VTOL & CTOL FIXEDWING UAV

India
Created on 2020.06.26 199 views
4
ABOUT
PROJECT TIMELINE
VTOL .07 | DASSAULT SYSTÉMES POTY2020 | Country of Origin: India | By Kaushik Ishan Since the very first beginning of Unmanned Aerial Vehicles this has been a quest for Science aficionados, Researchers, Scientists & Inventors to look after the various methodologies of flying machines. Ideologies of UAV flight innovations that has been claimed by many great historians for thousands of decades, In which some artistic works has been found in the Legendary Italian polymath Leonardo da Vinci’s book’s related to flying aircraft, In the Indian ancient text book named Vaimanik Shastra many aeronautical inventions were supposed to be claimed by the author but they only inspire the young innovators to dream of extreme imaginative possibilities of designing flying machines in the form of both manned and unmanned flying machines. Technically, earliest recorded use of an UAV during war era was occurred in July 1849 afterwards there were many inventers who successfully accomplished their dream of making working prototypes into reality like the first Hewitt-Sperry Automatic Airplane used by US Navy during first World War (also known as “Flying Bomb”), Three Standard E-1 which was converted into drones after World War I, Éclair Propeller the first airplane developed by “Marcel Dassault” now Known as “Dassault Aviation” which was used on the Spad VII flown by French ace George Guynemer, In late 1919 OQ-2 Radio plane Invented by Edward M. Sorensen & Owned by an Actor & Aviator Reginald Denny’s Company, General Atomics RQ-1 / MQ-1 Predator built by Abraham Karem and many prestigious names would be on list ahead that never goes down.   Emerging trends of unmanned systems have been observed in the past few decades where UAVs has been used for multipurpose operations in both Military as well as Civilian sectors for Surveillance, Inspections, Surveys, Data Acquisition, Aerial Cinematography, Aerial Videography, Aerial Photography and It has been used by Scholars & Youth hobbyist for their learning as well as research oriented innovations to keep on improving the study of Unmanned System Technologies. Many Global Startups and large defense companies are beginning to experiment with the latest technologies for UAV systems, hoping to take advantage of the ability of UAVs to cut down on the time and expense of conducting patrols and reconnaissance works. This description/abstract has been focused forward to describe the Design of this “Vynateya Tactical Ordinance Lander 0.07” referred as “VTOL .07” using “DASSAULT CATIA V5 STUDENT EDITION” Software for further fabrication design aspects, .07 is the first version of this type of hybrid VTOL & CTOL Fixed wing UAV aimed to operate on Tactical Artificial Intelligence Capabilities to fight against terrorism and also involved research oriented developments to obtain a bird-eye view to detect subtle changes that cannot be readily identified by “General routine UAVs for defense systems” at ground/base levels.   Prototyped & designed using CATIA V5 STUDENT EDITION “VTOL .07” is equipped with advanced sensing technologies that can deliver multispectral images that are operable to create spectral reflectance bands which allows the user to calculate various indexes that are otherwise invisible to the human capabilities. VTOL .07 collect information that can be developed upon the surveillance, Inspections and routine air practices with the help of dedicated algorithms, these algorithms build a successful A.I. management for the sustainable and low cost VTOL .07 which is highly efficient with its precision and accuracy. “VTOL .07” is an incredible masterpiece with outstanding air defense technologies and marvelous aerospace design which attracts the Science aficionados, Researchers, Scientists & Inventors to look after the various methodologies of flying machines in redefined manner...
Discover the team
Who’s behind this project
IK Ishan Kaushik
Discover the solution
Software used for this project
4
Project Timeline
Hey guys I'm Working on the animated version of my design, I've been working on the design since long and finalized the completion on 26th June but from last few weeks I'm unable to render the animation due to my poor system performance but I'm dedicately trying to make animation as this is my dream project which comes into shape by using Dassault Systemes CATIA V5 Student Edition, without their support my dream of make my own self made aircraft UAV will not be possible to shaped, I'm thankful to the Dassault Systemes for making my dream come true and giving us the opportunity to use student edition for learning needs. Please guys stay tuned for more updates... right now trying to resolve animation rendering from last few days, I was planning to upload the animated video but unfortunately I cant afford the high performance PC for such animation task.. due to that reason my project which was already finished before deadline was published on the same date of final submission. but still I'm trying my level best to present good quality animation of my assemblies. Please stay in touch with your precious comments and reviews.

Regards,
Kaushik Ishan
Project Timeline
2020.06.27
Hey guys I'm Working on the animated version of my design, I've been working on the design since long and finalized the completion on 26th June but from last few weeks I'm unable to render the animation due to my poor system performance but I'm dedicately trying to make animation as this is my dream project which comes into shape by using Dassault Systemes CATIA V5 Student Edition, without their support my dream of make my own self made aircraft UAV will not be possible to shaped, I'm thankful to the Dassault Systemes for making my dream come true and giving us the opportunity to use student edition for learning needs. Please guys stay tuned for more updates... right now trying to resolve animation rendering from last few days, I was planning to upload the animated video but unfortunately I cant afford the high performance PC for such animation task.. due to that reason my project which was already finished before deadline was published on the same date of final submission. but still I'm trying my level best to present good quality animation of my assemblies. Please stay in touch with your precious comments and reviews.

Regards,
Kaushik Ishan
2020.06.27

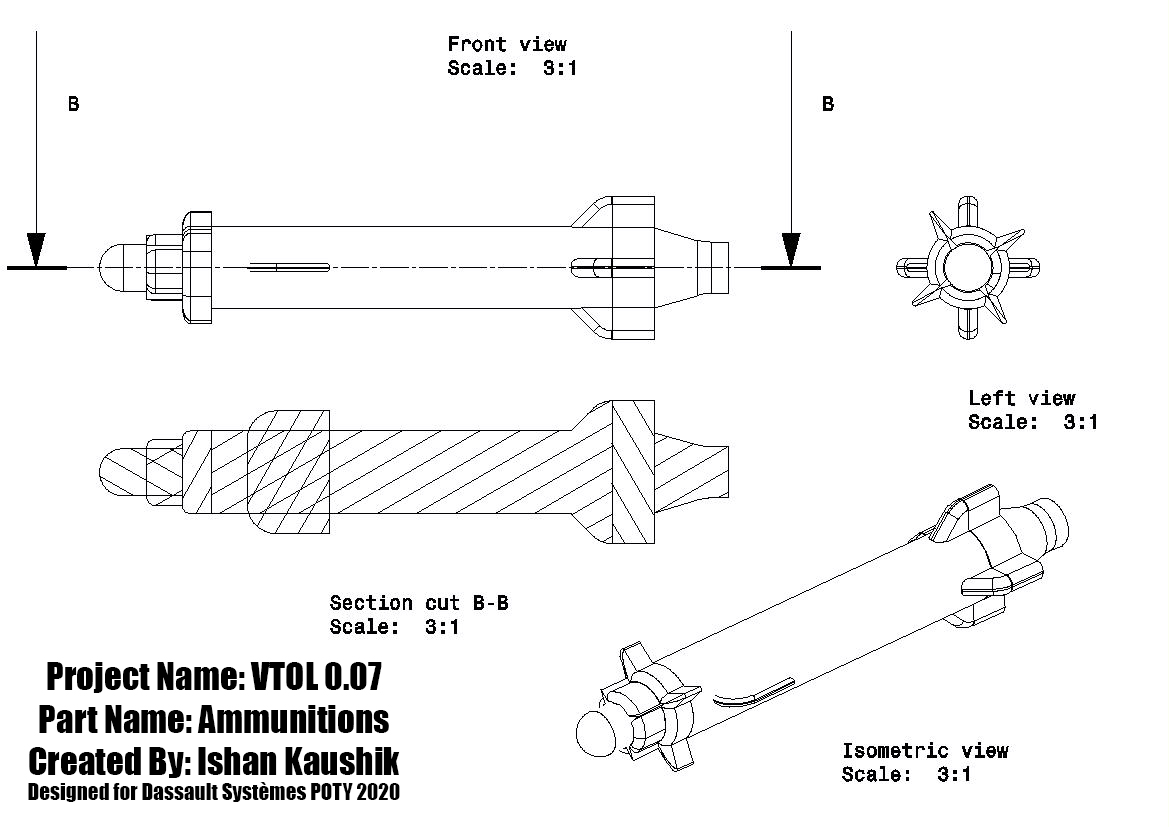

This is my Ammunition and Missile designing for our Armed forces to fight against Terrorism and Save Innocent livelihoods, Science and technology should be used for betterment of planet Earth and its innocent beings which our Mother Earth is nourishing..
2020.06.27

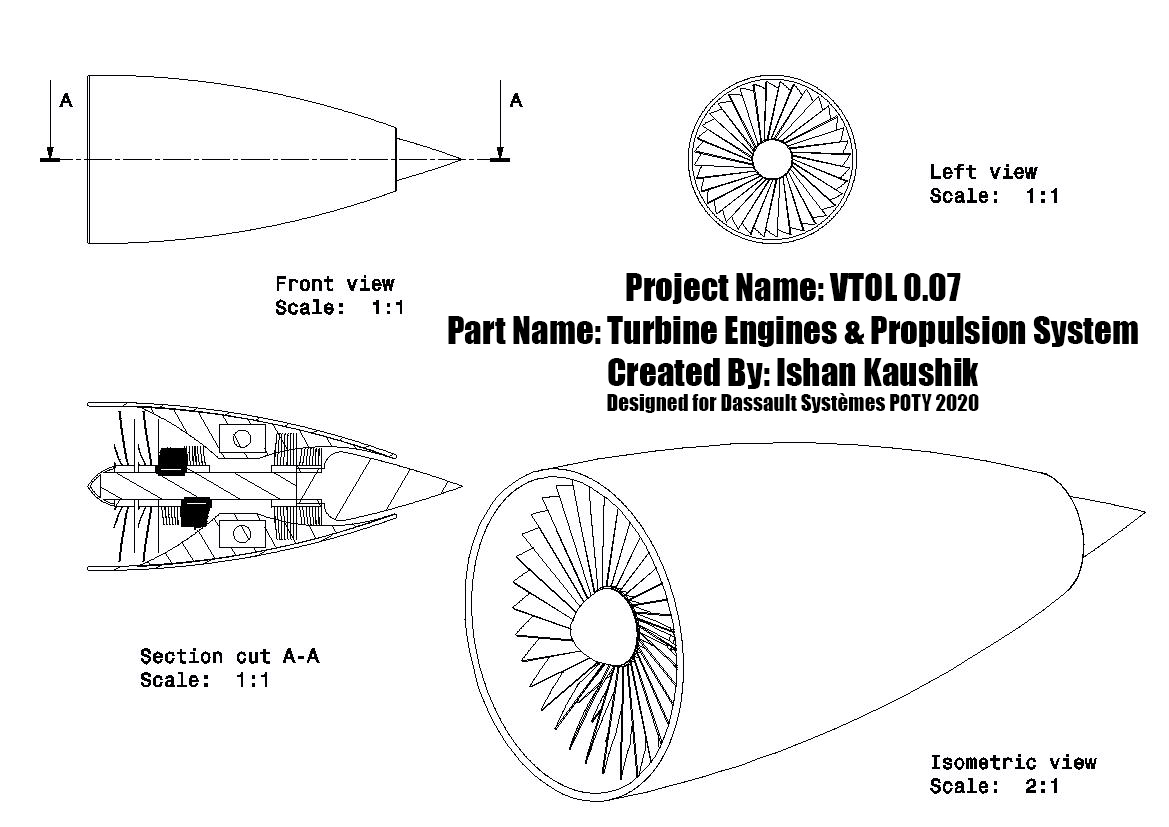

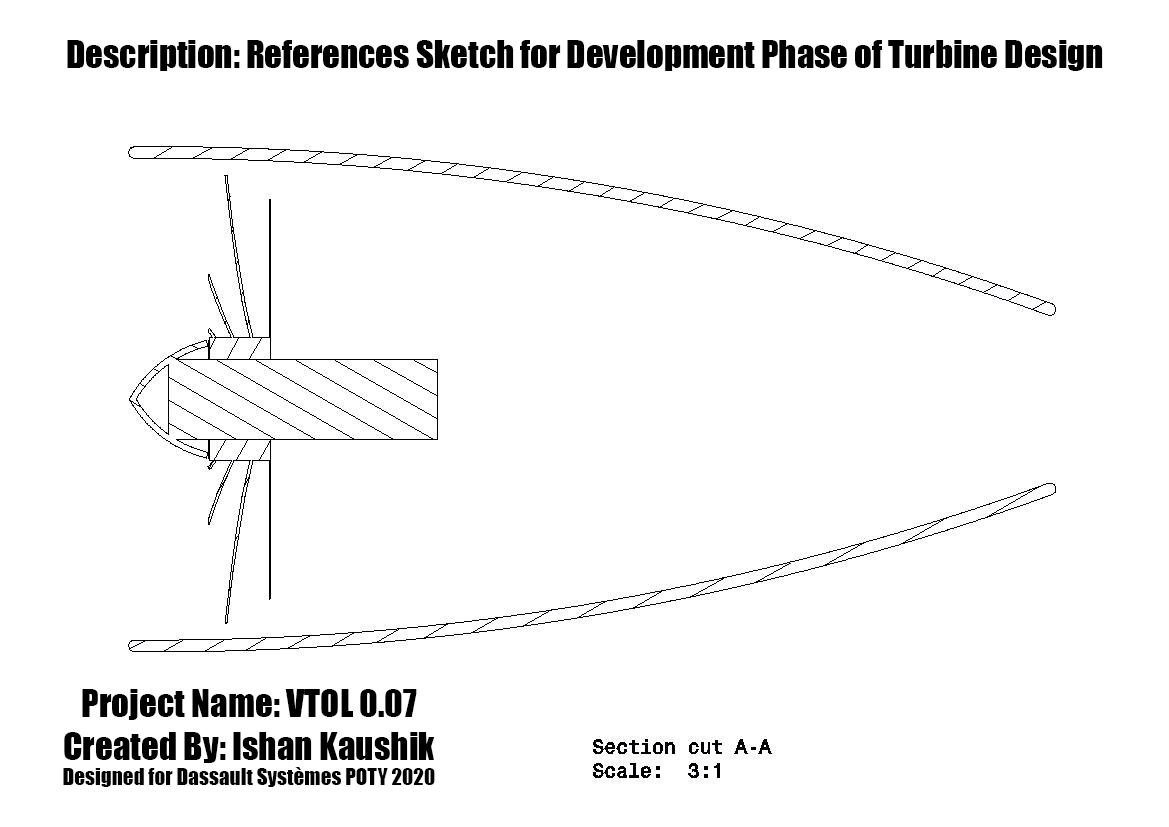

This is my Complete Geometric Drafting of jet Turbine Engine
2020.06.27

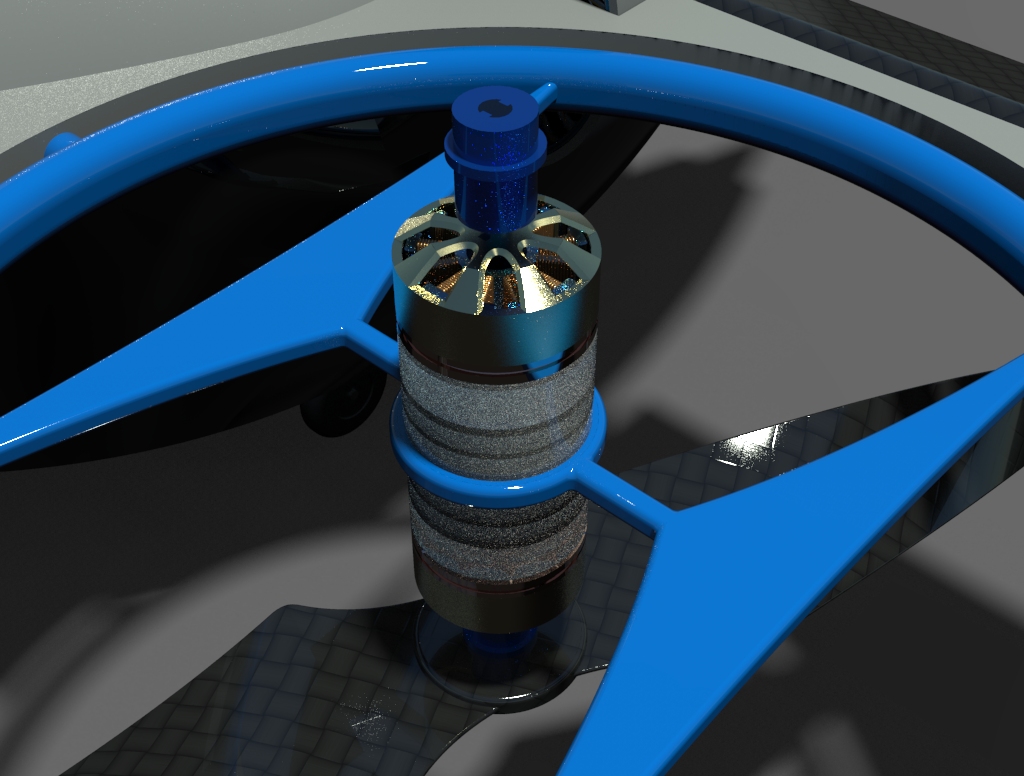

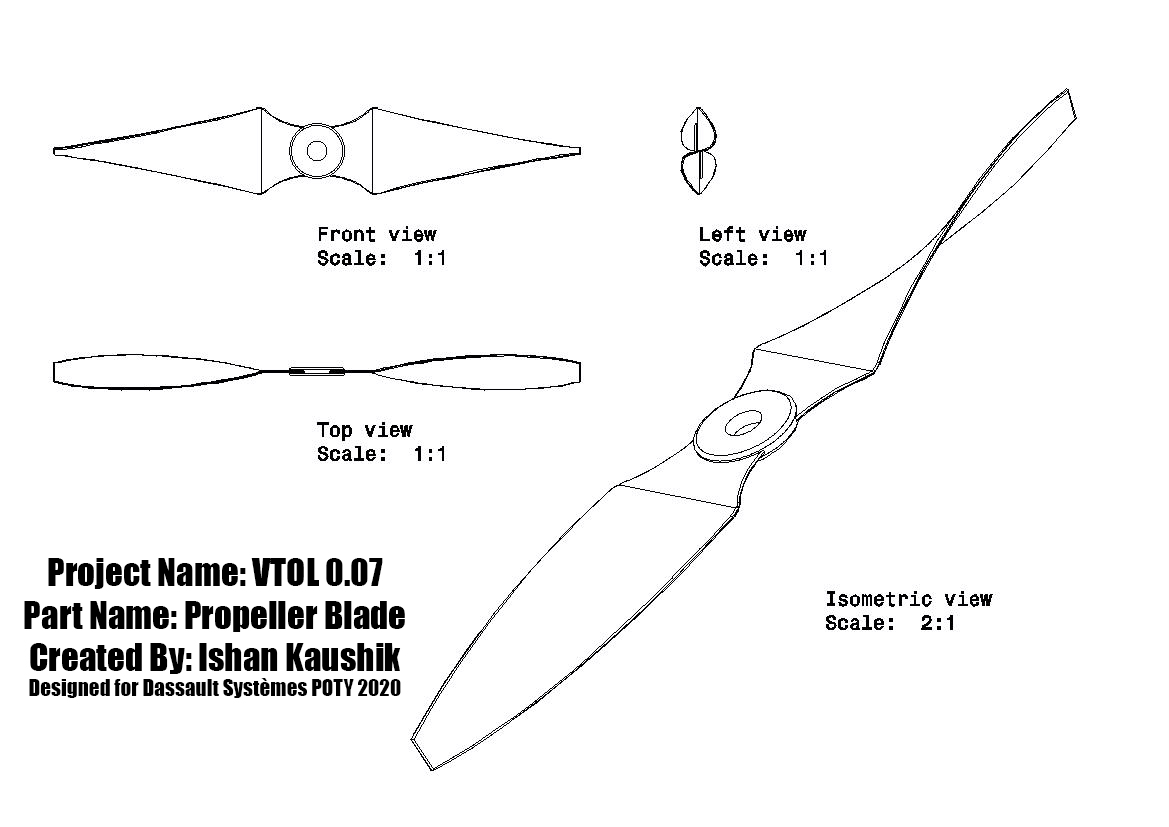

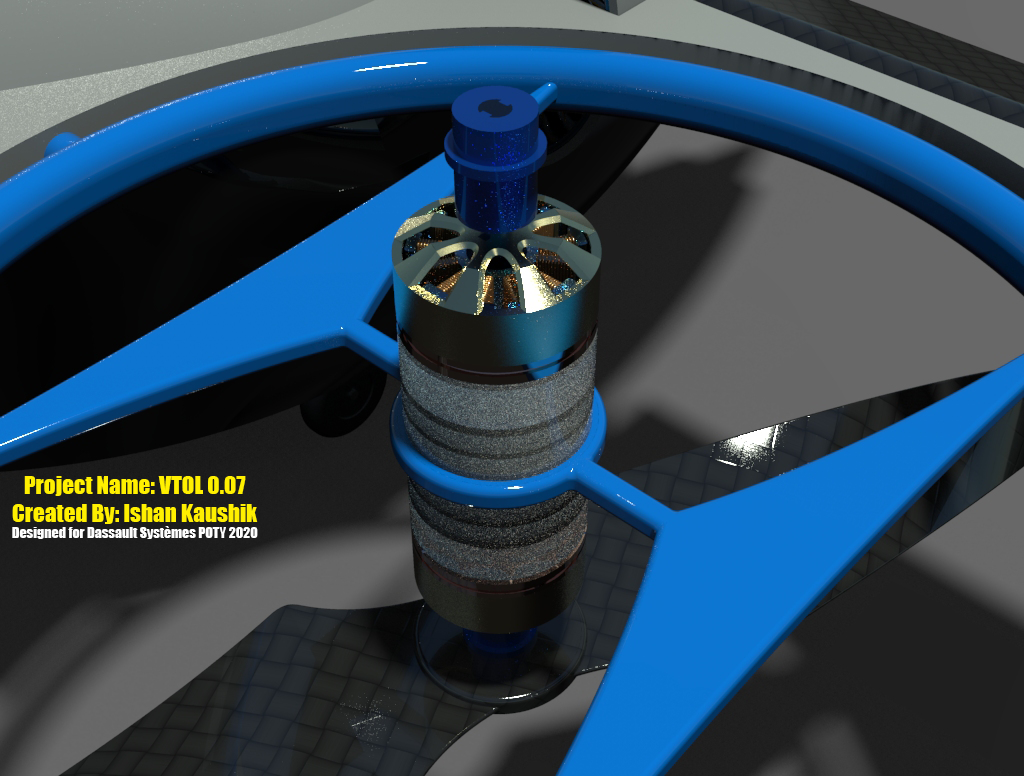

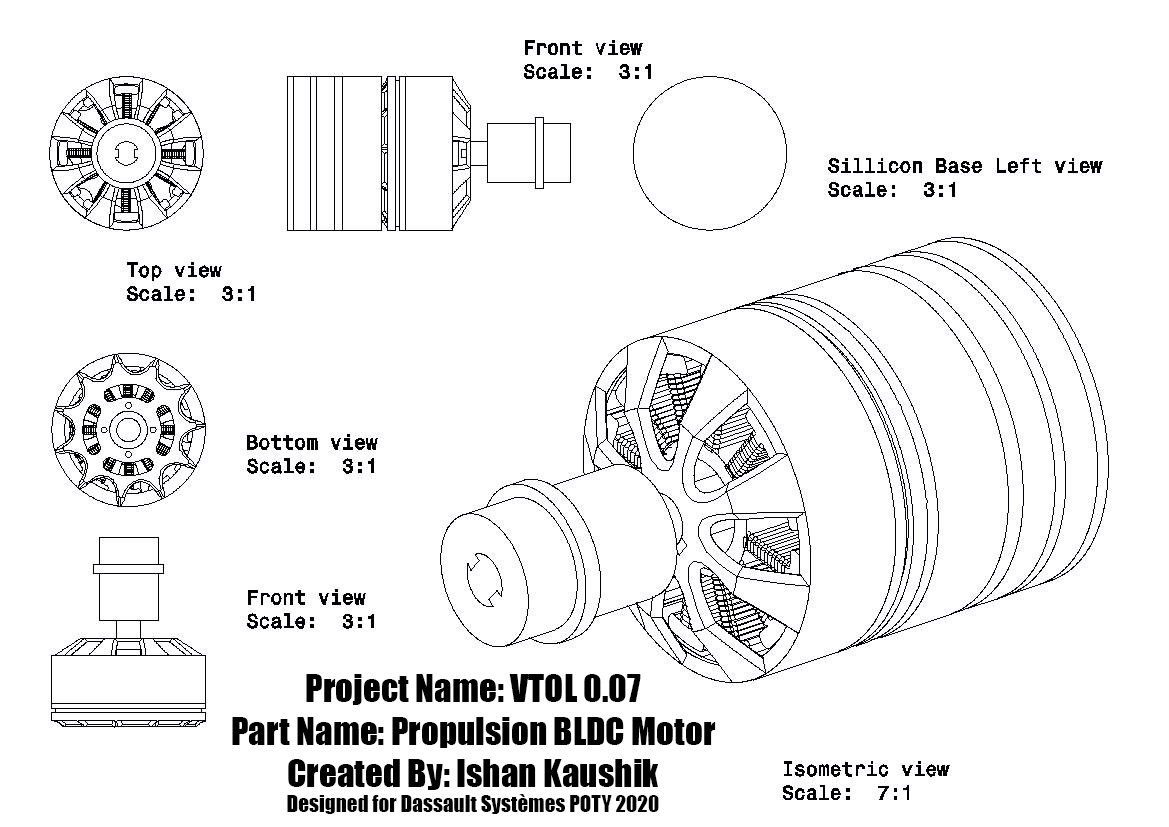

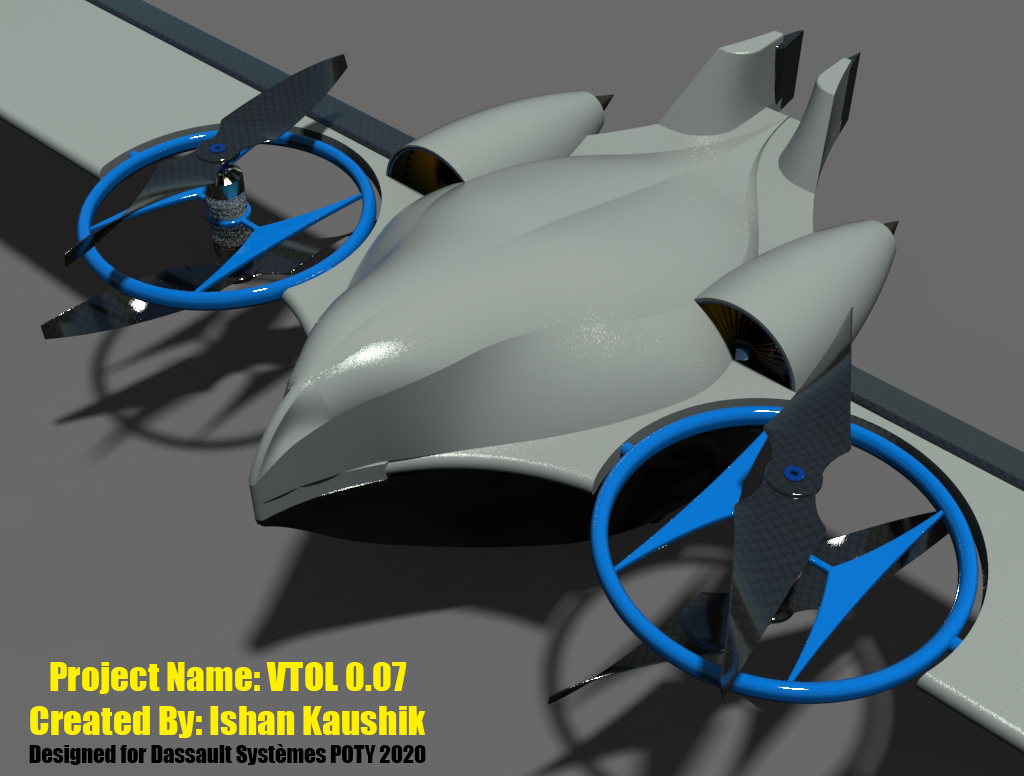

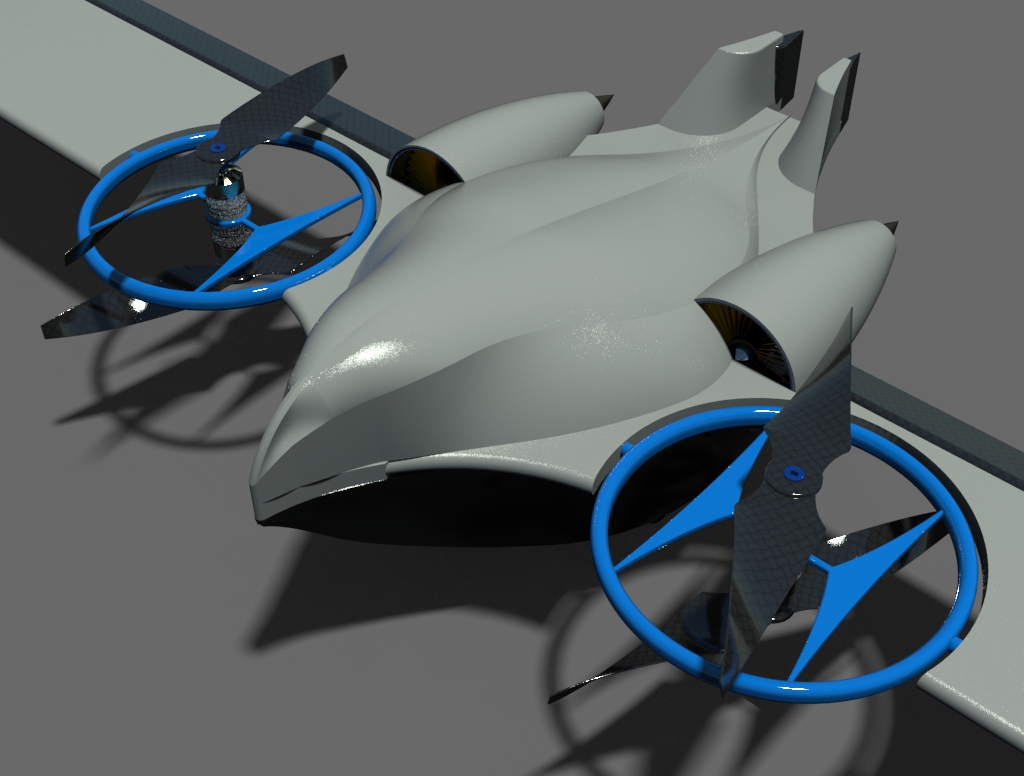

I made unique Propulsion system for better Thrust Generation and for good calculative analysis of the Aero-Foil structure..
2020.06.27

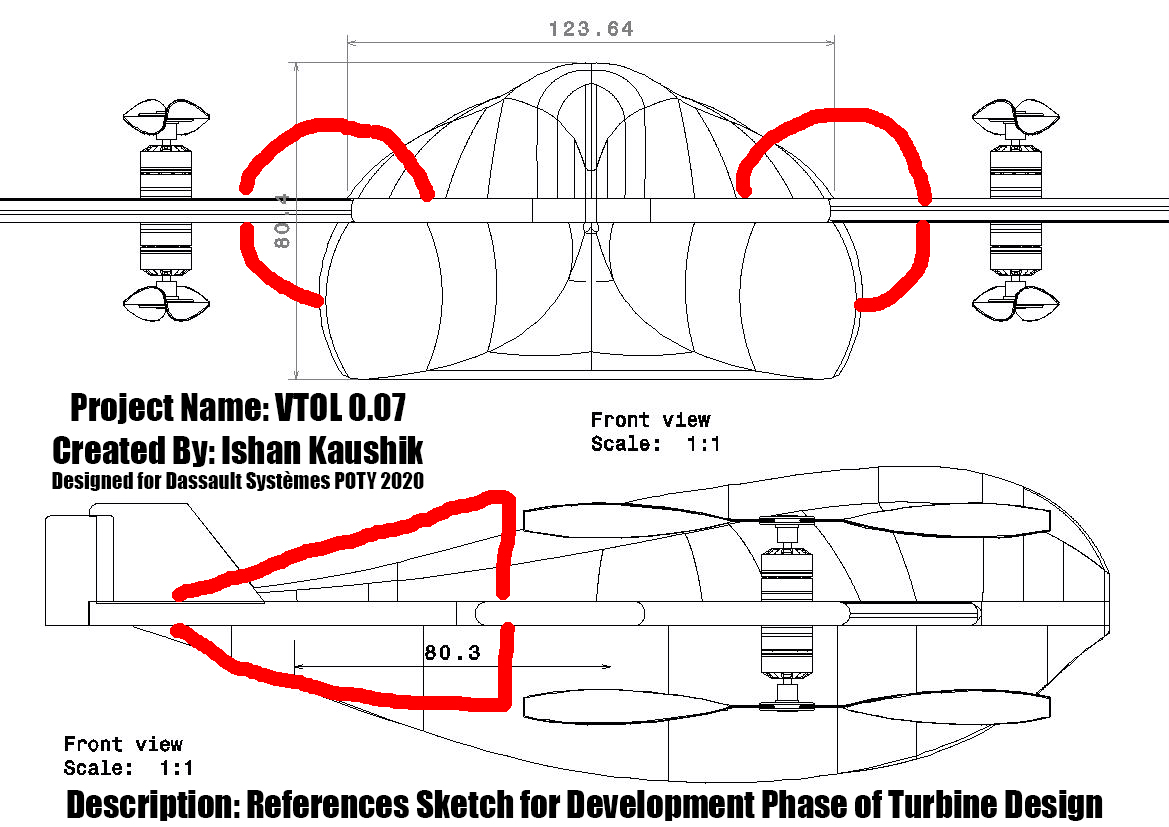

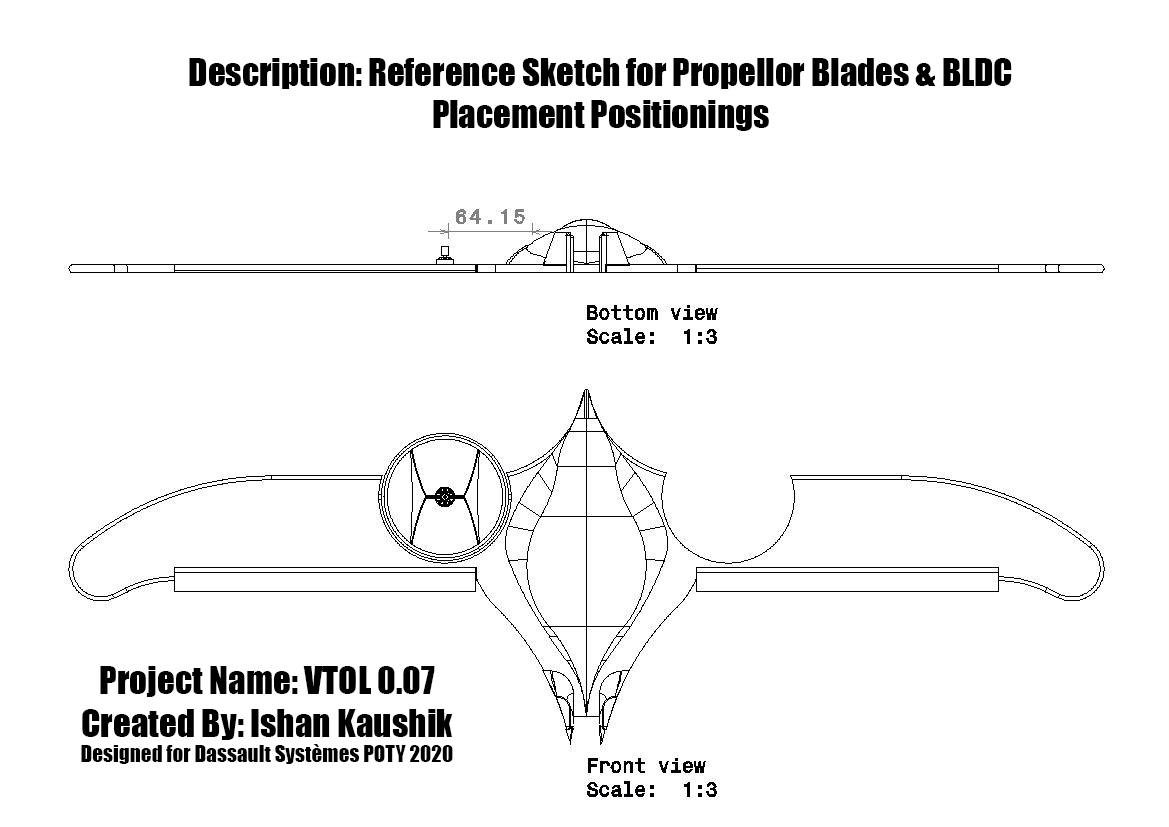

I Used the geometrical Drafting to get analyse my upcoming problems rectified
2020.06.27

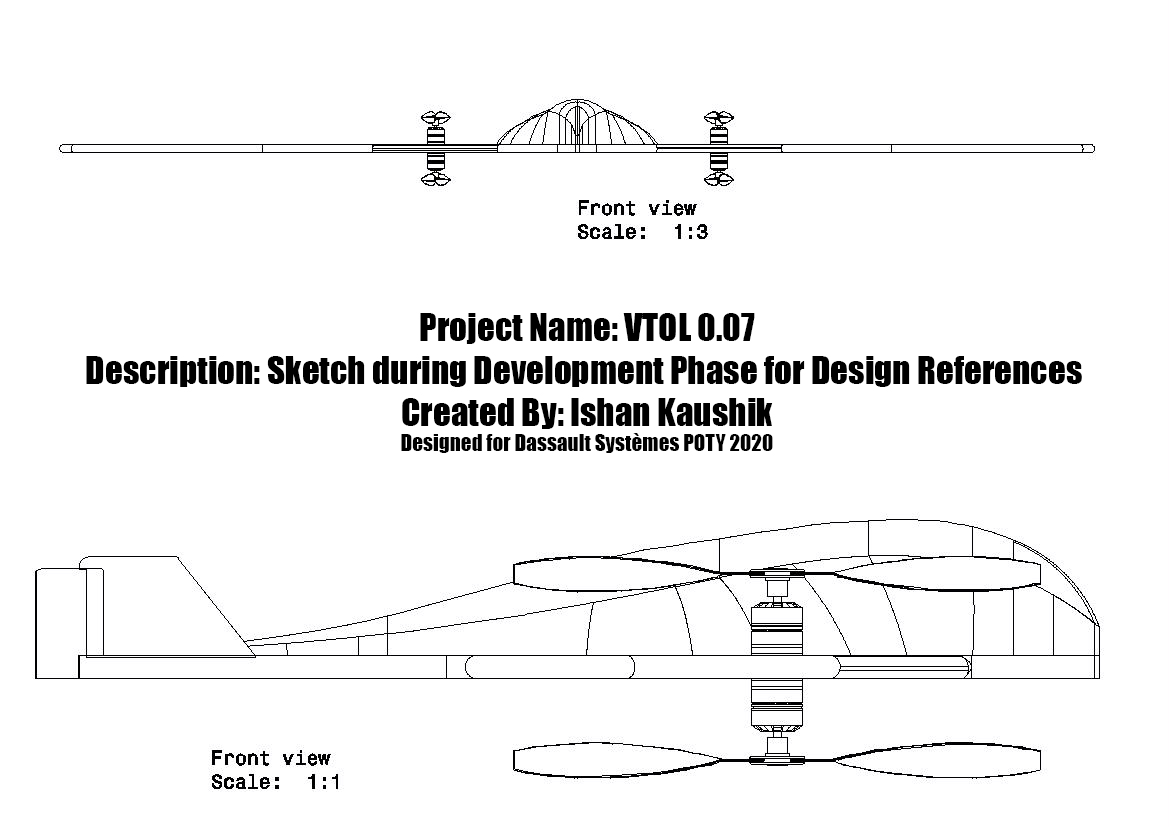

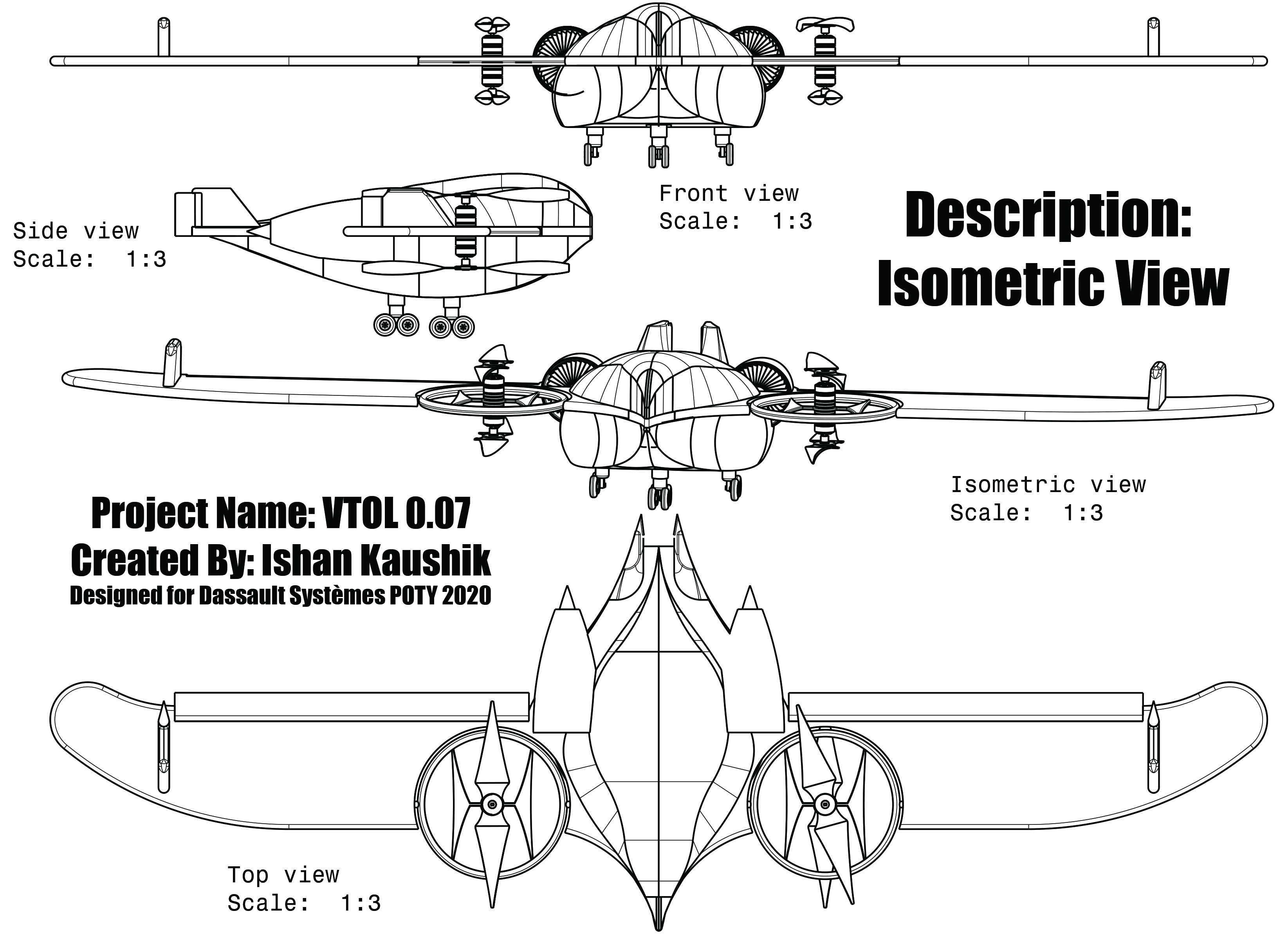

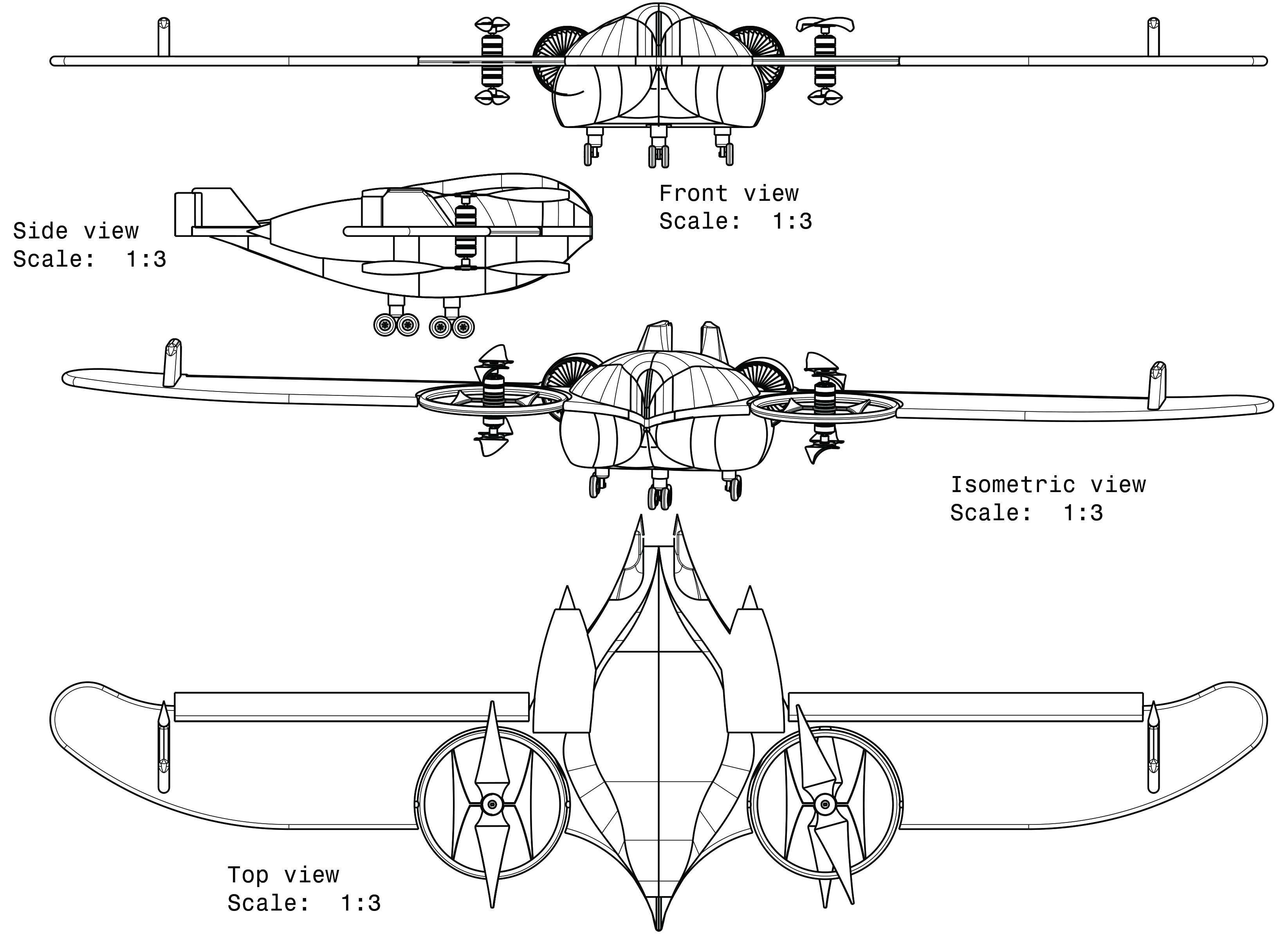

I'm Sharing the Drafting's and Geometrical Data for the Air-frame and the complete assembly Structure
2020.06.26
Access this link for VTOL 0.07 Video Upadte.
Channel Name: Aeronomouskid: The Lofty Airbender.

https://www.youtube.com/channel/UCTzl_kReS1Y0GiwtQCiEe3g?view_as=subscriber
