Modeling method

-whole model was done using top down modeling methodology
-main assembly consists of several sub assemblies, and within those geometry of each part is controlled by a skeleton part

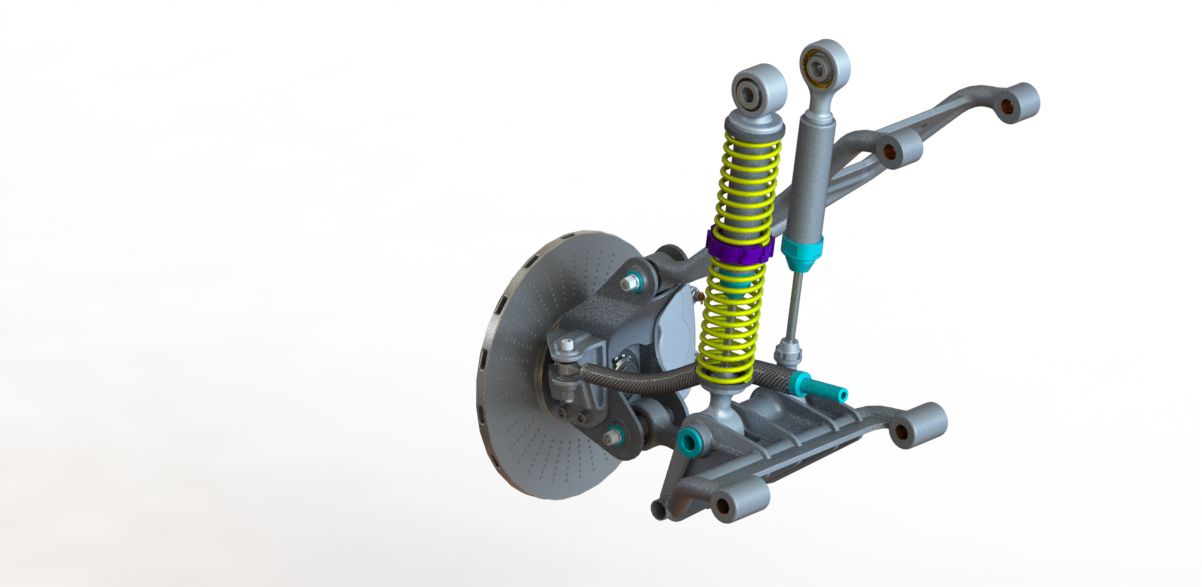

-this allow to modify multiple parts with one click (for example: changing the wheelbase in main skeleton parts results in changes done to all suspension parts)

Add new comment

To post a comment, you must be logged to your user account

Log In or Sign Up
Node id
10882

Powetrain

- single electric motor
- electric motor, external spur gear set and planetary gear all in single casing, which results in a very compact power unit
